Wastewater/Activity/PacpInspection/1.0Dec 8, 2017, 10:11 AM
18 0980_18 0979 _08122017_021245.mp4
- Date
- 12/08/2017
- W/O
- 673977
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00717
- PipeID
- P14831
- Time
- 2:11 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5268
- Sewer Name
- 18 WORSHAM CREEK RELIEF TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_673977_TV18061_DEC2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 18 0980
- Downstream MH
- 18 0979
- Dir. of Survey
- Downstream
- Length Surveyed
- 310.6 ft.
- Total Length
- 310.7 ft.
- Structural Index
- 3
- Structural Quick
- 4131
- Structural Rating
- 9
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

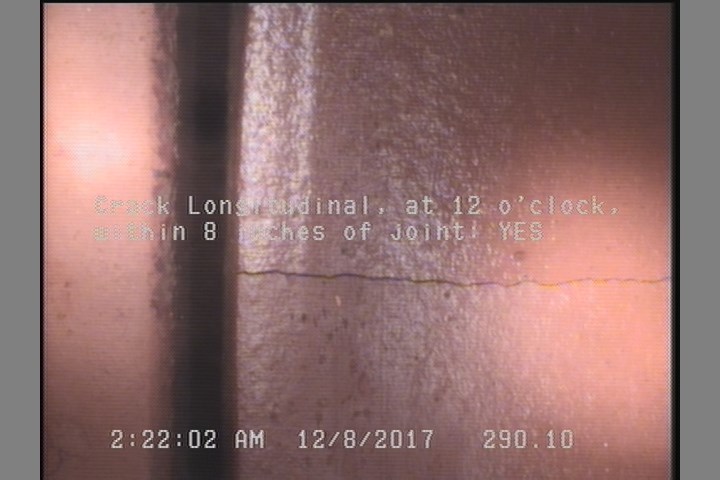

290.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

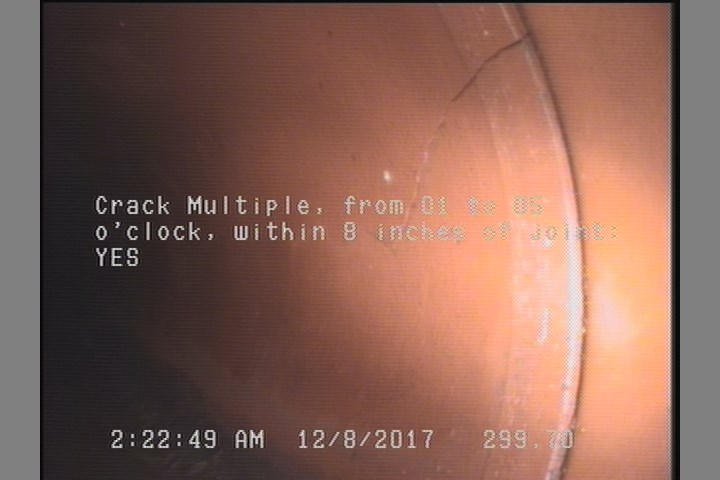

299.7 ft. - Crack Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES

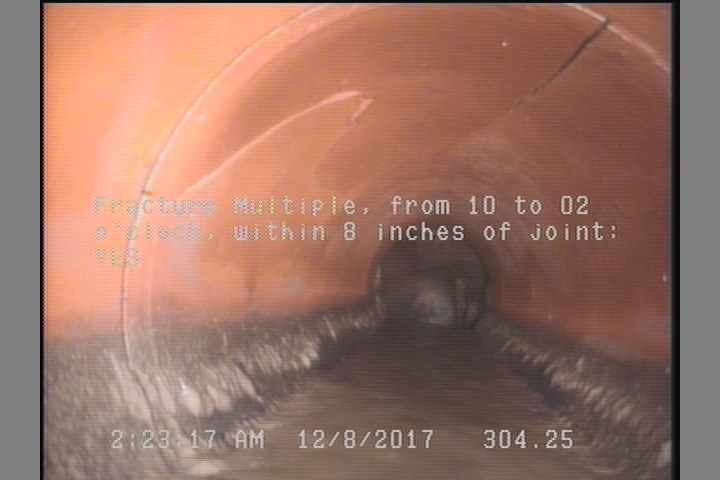

304.3 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 290.1 | CL | — |
| 0 | MWL | — |
| 299.7 | CM | — |
| 310.7 | AMH | 18 0979 |
| 0 | AMH | 18 0980 |
| 0 | MWM | — |
| 304.3 | FM | — |
| 308 | MGO | SPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK |
Properties (5)
- additional_info
- SC346295
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-08T02:11:10-08:00
- sewer_category
- Gravity
