Wastewater/Activity/PacpInspection/1.0Nov 20, 2017, 11:57 AM
02 1054_02 1053 _20112017_035801.mp4
- Date
- 11/20/2017
- W/O
- 668906
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00310
- PipeID
- P03625
- Time
- 3:57 AM
- Certificate
- 07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4843
- Sewer Name
- 02 UNION STREET TRUNK
- City
- MONTEBELLO, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_668906_TV02119_NOV2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1054
- Downstream MH
- 02 1053
- Dir. of Survey
- Downstream
- Length Surveyed
- 91.4 ft.
- Total Length
- 91.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

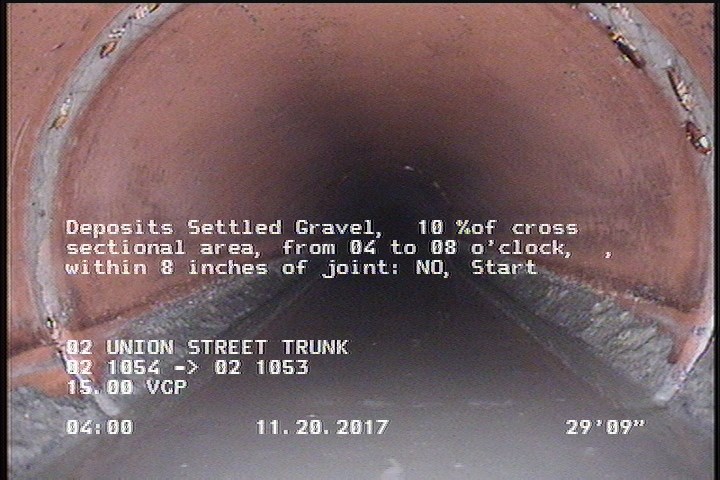

29.7 ft. - Deposits Settled Gravel, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

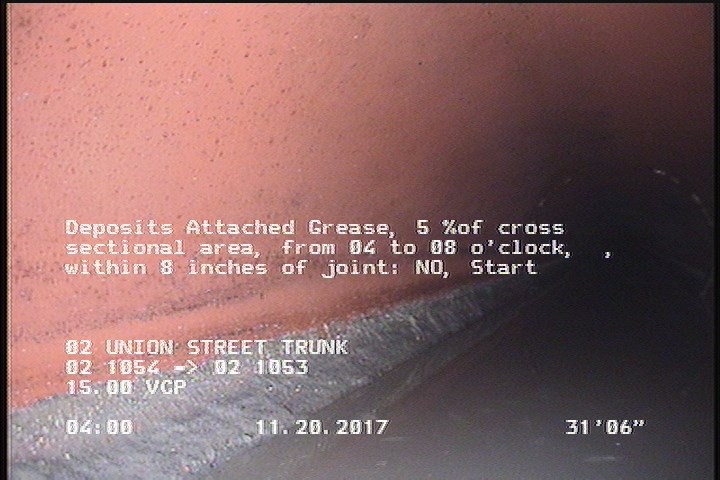

31.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | MGO | — |
| 29.7 | DSGV | — |
| 91.4 | DSGV | — |
| 59.4 | MWL | — |
| 0 | AMH | 02 1054 |
| 91.4 | MSA | REACHED POINT OF INTEREST |
| 31.5 | DAGS | — |
| 91.4 | DAGS | — |
Properties (5)
- additional_info
- SC349663
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-11-20T03:57:40-08:00
- sewer_category
- Gravity
