Wastewater/Activity/PacpInspection/1.0Nov 20, 2017, 10:54 AM
02 1052_02 1051_20112017_025504.mp4
- Date
- 11/20/2017
- W/O
- 668906
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00310
- PipeID
- P03623
- Time
- 2:54 AM
- Certificate
- 07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4843
- Sewer Name
- 02 UNION STREET TRUNK
- City
- MONTEBELLO, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_668906_TV02119_NOV2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1052
- Downstream MH
- 02 1051
- Dir. of Survey
- Downstream
- Length Surveyed
- 332.2 ft.
- Total Length
- 332.2 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

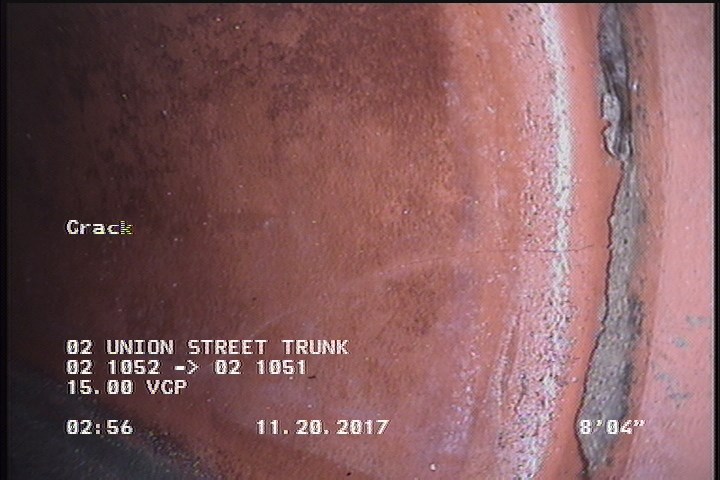

8.3 ft. - Crack Spiral, from 03 to 04 o'clock, within 8 inches of joint: YES

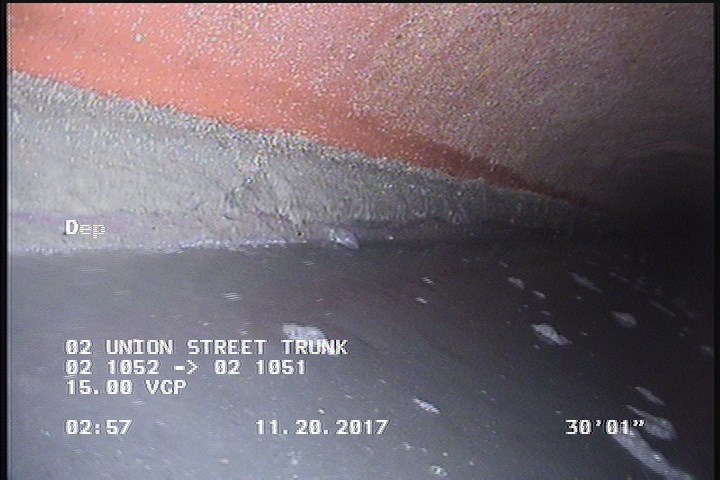

30.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

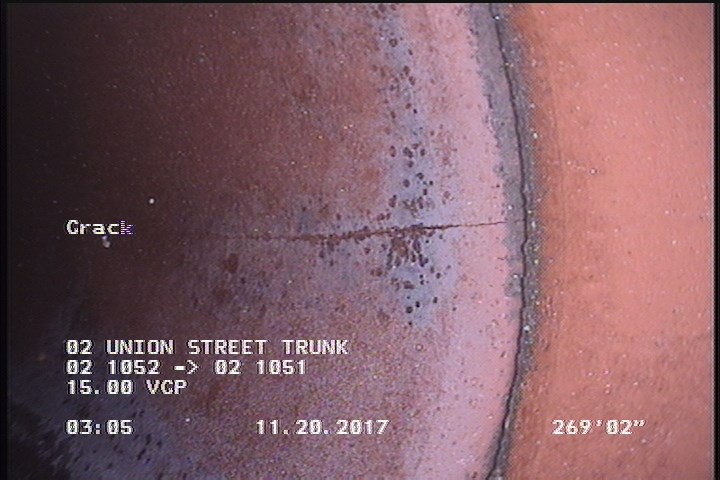

269 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 332.2 | AMH | 02 1051 |
| 75 | TB | — |
| 0 | MWL | — |
| 8.3 | CS | — |
| 288.7 | TB | — |
| 3.6 | TB | — |
| 165.2 | DAGS | — |
| 0 | AMH | 02 1052 |
| 269 | CL | — |
| 0 | MWM | — |
| 330.3 | DSGV | — |
| 185 | TB | — |
| 10.9 | DSGV | — |
| 30.1 | DAGS | — |
Properties (5)
- additional_info
- SC349663
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-11-20T02:54:12-08:00
- sewer_category
- Gravity
