Wastewater/Activity/PacpInspection/1.0Nov 20, 2017, 10:43 AM
02 1053_02 1052_20112017_024331.mp4
- Date
- 11/20/2017
- W/O
- 668906
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00310
- PipeID
- P03624
- Time
- 2:43 AM
- Certificate
- 07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4843
- Sewer Name
- 02 UNION STREET TRUNK
- City
- MONTEBELLO, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_668906_TV02119_NOV2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1053
- Downstream MH
- 02 1052
- Dir. of Survey
- Downstream
- Length Surveyed
- 288.9 ft.
- Total Length
- 288.9 ft.
- Structural Index
- 2
- Structural Quick
- 3123
- Structural Rating
- 9
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (4)

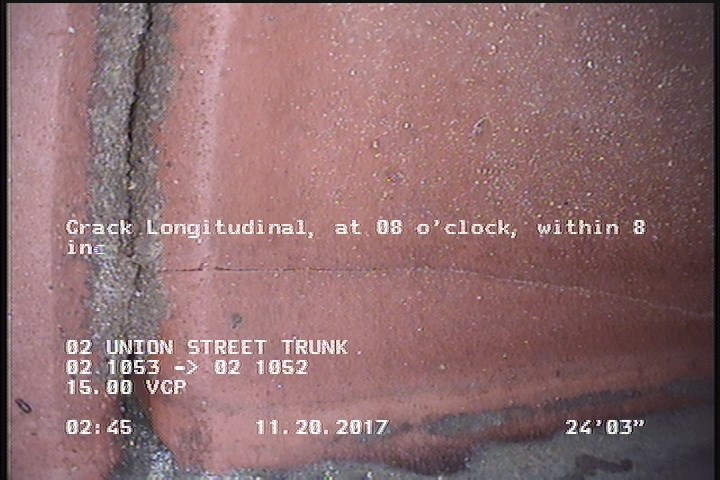

24.3 ft. - Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES

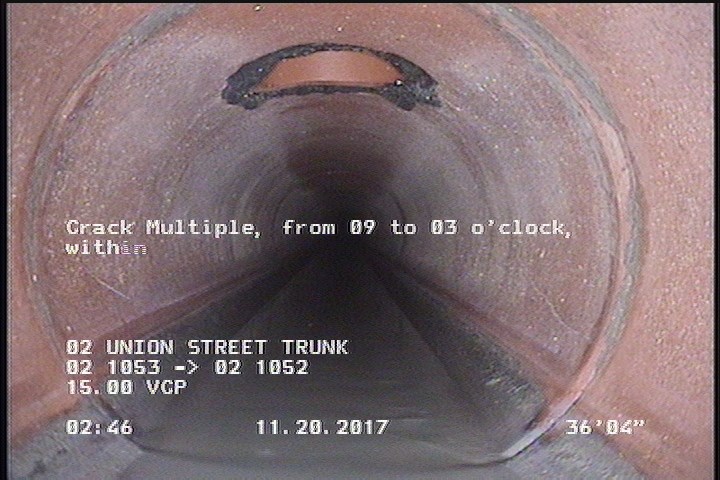

36.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

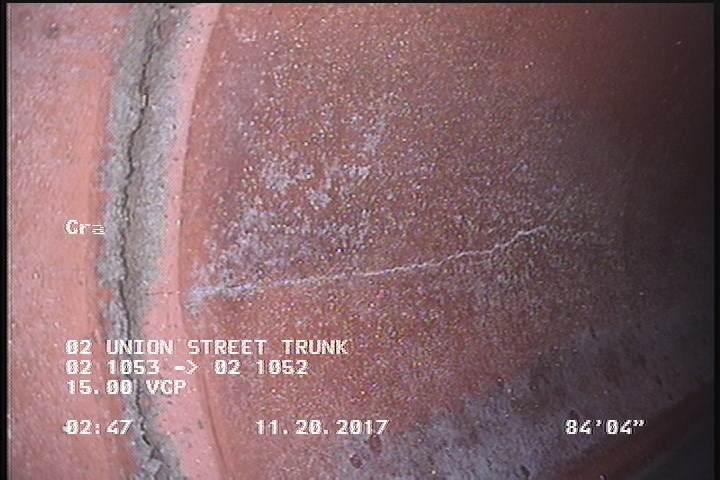

84.2 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

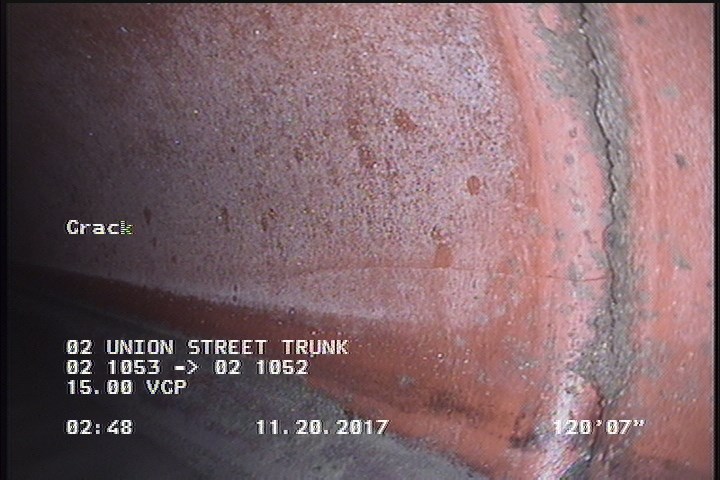

120.5 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 84.2 | CL | — |
| 36.3 | CM | — |
| 120.5 | CL | — |
| 0 | AMH | 02 1053 |
| 288.9 | AMH | 02 1052 |
| 169.5 | TB | — |
| 24.3 | CL | — |
| 37.3 | TB | — |
Properties (5)
- additional_info
- SC349663
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-11-20T02:43:08-08:00
- sewer_category
- Gravity
