Wastewater/Activity/PacpInspection/1.0Nov 27, 2017, 09:57 AM
02 1042_02 1041 _27112017_015819.mp4
- Date
- 11/27/2017
- W/O
- 668906
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00310
- PipeID
- P03612
- Time
- 1:57 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5047
- Sewer Name
- 02 UNION STREET TRUNK
- City
- MONTEBELLO, CA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_668906_TV02119_NOV2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1042
- Downstream MH
- 02 1041
- Dir. of Survey
- Downstream
- Length Surveyed
- 260.3 ft.
- Total Length
- 260.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

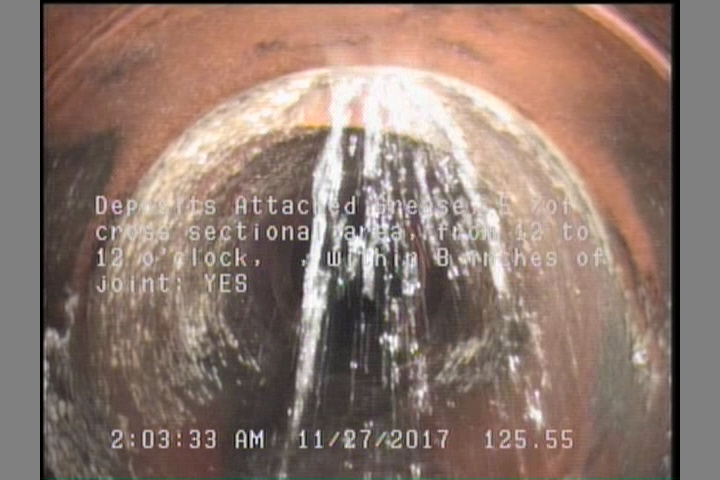

125.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 12 to 12 o'clock, , within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 260.3 | AMH | 02 1041 |
| 226.6 | TF | — |
| 260.3 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | AMH | 02 1042 |
| 125.6 | TFA | — |
| 125.6 | DAGS | — |
Properties (5)
- additional_info
- SC346276
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-11-27T01:57:40-08:00
- sewer_category
- Gravity
