Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 24, 2015, 03:36 PM

  • 15 0650_15 0649_20151123_045806.mp4

Date
10/24/2015
W/O
531432
Weather
Dry
Operator/Surveyor
ERU
Sewer ID
Z00606
PipeID
P12922
Time
8:36 AM
Certificate
123456
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2287
Sewer Name
15 GRAND AVENUE TRUNK
City
SAN GABRIEL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
10
Purpose
Routine Assessment
Project
WO_531423_TV15027_OCT2015
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
15 0650
Downstream MH
15 0649
Dir. of Survey
Downstream
Length Surveyed
242.3 ft.
Total Length
242.3 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 15 0650 to 15 0649
MH: 15 0650MH: 15 0649downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK ACTIVE0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 04456 ft. MGO - General Observation - MAG COAT 40%6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start6 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start38.3 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"47.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"48.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"56.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"72.1 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"74.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"108 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"120.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"165.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"187.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"237.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish237.4 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish242.3 ft. AMH - Downstream Manhole, Survey Ends - 0458242.3 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK ACTIVE

Observation photos (1)

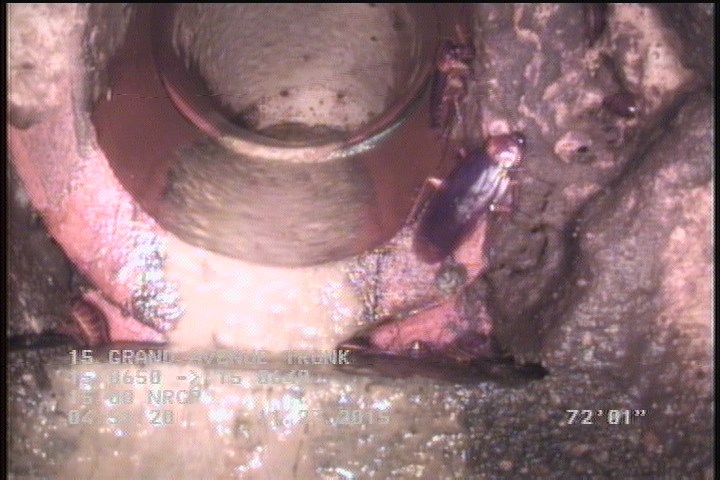

  • Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"

    72.1 ft. - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"

All inspections of P12922Work order 531432

Observations (22)

DistanceCodeObservation
38.3TBA—
0MWL—
0MGOCONNECTION AT MH 3 OCLOCK ACTIVE
165.4TFA—
120.4TFC—
187.2TFA—
6MGOMAG COAT 40%
74.4TFC—
6DAGS—
237.4DAGS—
56.4TFA—
242.3AMH0458
0MWM—
108TFC—
0MGOCONNECTION AT MH 9 OCLOCK ACTIVE
48.8TFA—
47.9TFA—
0AMH0445
242.3MGOCONNECTION AT MH 9 OCLOCK ACTIVE
237.4SAV—
6SAV—
72.1TBA—

Properties (5)

additional_info
SC205369
custom_field_two
3
customer
LACSD
datetime
2015-10-24T08:36:05-07:00
sewer_category
GRAVITY
