Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 24, 2015, 03:35 PM

  • 15 0653_15 0652_20151123_034051.mp4

Date
10/24/2015
W/O
531432
Weather
Dry
Operator/Surveyor
ERU
Sewer ID
Z00606
PipeID
P12925
Time
8:35 AM
Certificate
123456
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2287
Sewer Name
15 GRAND AVENUE TRUNK
City
SAN GABRIEL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
10
Purpose
Routine Assessment
Project
WO_531423_TV15027_OCT2015
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
15 0653
Downstream MH
15 0652
Dir. of Survey
Downstream
Length Surveyed
298.5 ft.
Total Length
298.5 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 15 0653 to 15 0652
MH: 15 0653MH: 15 0652downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK ACTIVE0 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 03276.2 ft. MGO - General Observation - MAG COAT 40%6.2 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start6.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start75.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"84.7 ft. H - Hole, at 11 o'clock, within 8 inches of joint: YES, 4ft, 4ft - REPAIRS MADE95.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"156.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"187.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"227.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"233.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"237.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"263.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"292.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish292.9 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish298.5 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK ACTIVE298.5 ft. AMH - Downstream Manhole, Survey Ends - 0341

Observation photos (2)

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    6.2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

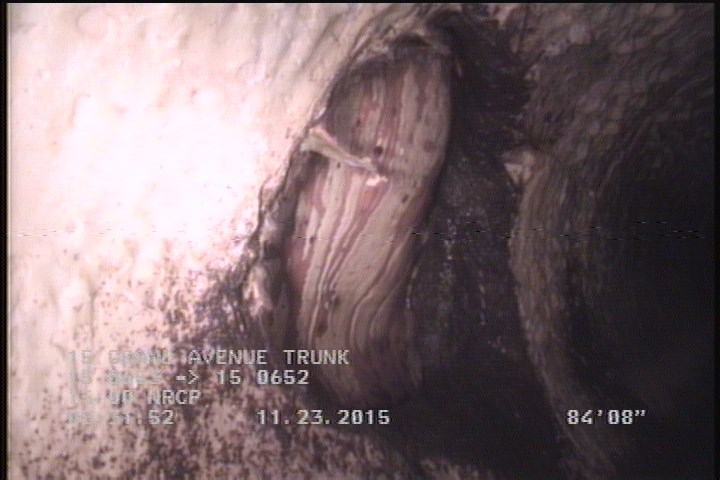

  • Hole, at 11 o'clock, within 8 inches of joint: YES, 4ft, 4ft - REPAIRS MADE

    84.7 ft. - Hole, at 11 o'clock, within 8 inches of joint: YES, 4ft, 4ft - REPAIRS MADE

All inspections of P12925Work order 531432

Observations (21)

DistanceCodeObservation
0MWL—
292.9DAGS—
292.9SAV—
6.2MGOMAG COAT 40%
0MWM—
6.2SAV—
156.9TFA—
233.2TFA—
298.5MGOCONNECTION AT MH 3 OCLOCK ACTIVE
95.8TFC—
237.2TFA—
84.7HREPAIRS MADE
263.6TFA—
0MGOCONNECTION AT MH 9 OCLOCK ACTIVE
0MGOCONNECTION AT MH 3 OCLOCK ACTIVE
298.5AMH0341
227.8TFA—
0AMH0327
6.2DAGS—
75.4TFA—
187.7TFA—

Properties (5)

additional_info
SC205369
custom_field_two
3
customer
LACSD
datetime
2015-10-24T08:35:40-07:00
sewer_category
GRAVITY
