Wastewater/Activity/PacpInspection/1.0Dec 7, 2017, 09:25 AM
B 1533_B 1532 _07122017_013440.mp4
- Date
- 12/07/2017
- W/O
- 674591
- Weather
- Dry
- Operator/Surveyor
- ERUIZ
- Sewer ID
- Z01200
- PipeID
- P26343
- Time
- 1:25 AM
- Certificate
- 123456
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5264
- Sewer Name
- B JOINT OUTFALL B - UNIT 6J RELIEF
- City
- LA CANADA FLINTRIDGE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_674591_TV16116_DEC2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- B 1533
- Downstream MH
- B 1532
- Dir. of Survey
- Downstream
- Length Surveyed
- 271.1 ft.
- Total Length
- 271.1 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

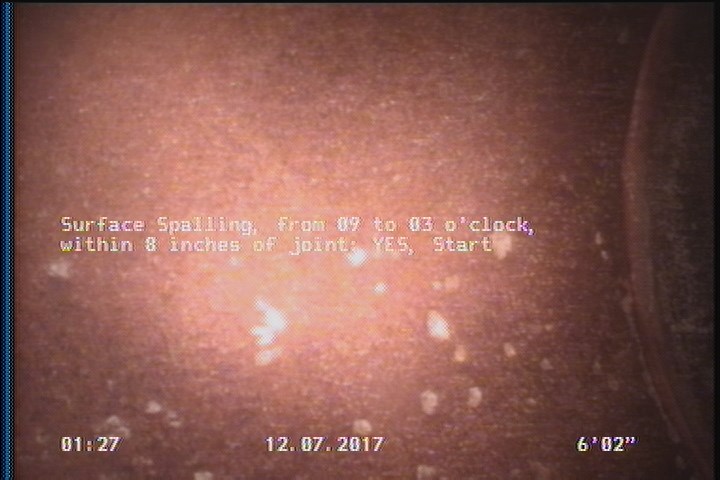

6.2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

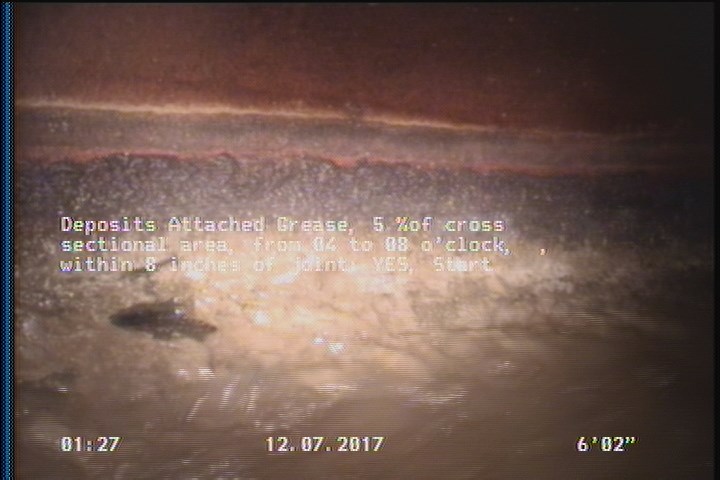

6.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 269.2 | SSS | — |
| 6.2 | SSS | — |
| 6.2 | DAGS | — |
| 0 | AMH | B 1533 |
| 0 | MWL | — |
| 0 | MWM | — |
| 269.2 | DAGS | — |
| 271.1 | AMH | B 1532 |
Properties (5)
- additional_info
- SC346466
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-07T01:25:47-08:00
- year_laid
- 40603
