Wastewater/Activity/PacpInspection/1.0Dec 7, 2017, 11:43 AM
C 0252_C 0251 _07122017_034325.mp4
- Date
- 12/07/2017
- W/O
- 674080
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00131
- PipeID
- P22179
- Time
- 3:43 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5266
- Sewer Name
- C JOINT OUTFALL C - UNIT 6B
- City
- LONG BEACH
- Loc. details
- Sidewalk
- Location Code
- F
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_674080_TV03120_DEC2017
- Sewer Type
- Siphon
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- C 0251
- Downstream MH
- C 0252
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.2 ft.
- Total Length
- 2.2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

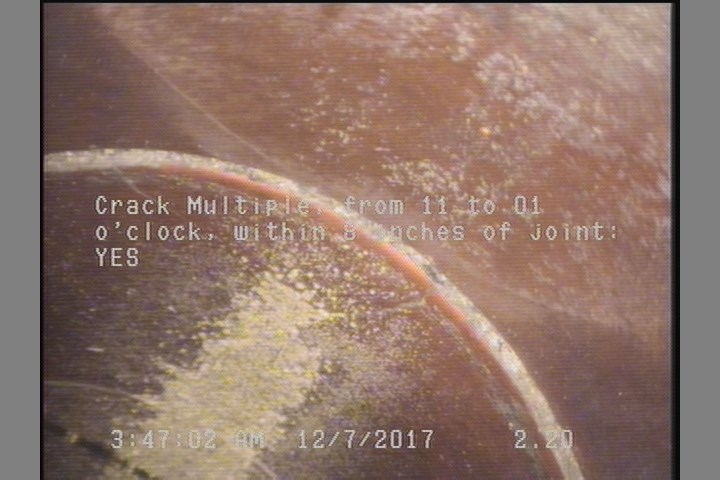

2.2 ft. - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

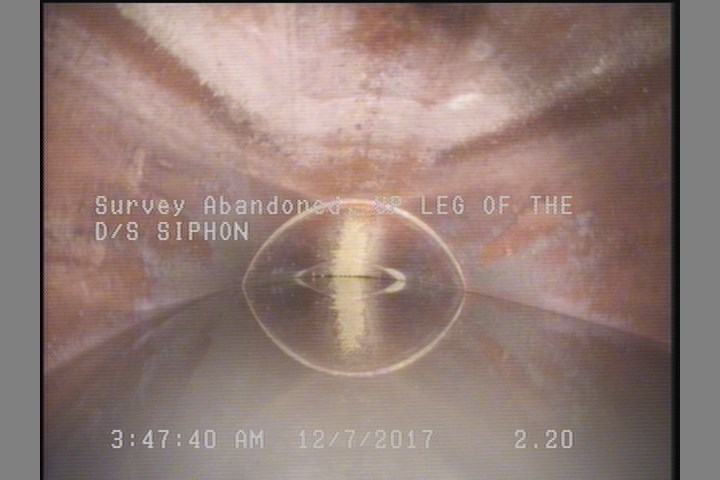

2.2 ft. - Survey Abandoned - UP LEG OF THE D/S SIPHON
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGO | Surface Spalling throughout the reach, 7 to 5 o'clock |
| 2.2 | CM | — |
| 0.4 | MWM | — |
| 2.2 | MSA | UP LEG OF THE D/S SIPHON |
| 0 | AMH | C 0251 SE |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC346293
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-07T03:43:07-08:00
