Wastewater/Activity/PacpInspection/1.0Dec 11, 2017, 10:14 AM
32 1275_32 1274 _12112017_022817.mp4
- Date
- 12/11/2017
- W/O
- 669244
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00834
- PipeID
- P20541
- Time
- 2:14 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5242
- Sewer Name
- 32 DISTRICT #26 INTERCEPTOR TRUNK
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_669244_TV32032_NOV2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 32 1275
- Downstream MH
- 32 1274
- Dir. of Survey
- Downstream
- Length Surveyed
- 240.2 ft.
- Total Length
- 240.2 ft.
- Structural Index
- 2
- Structural Quick
- 2700
- Structural Rating
- 14
- O&M Index
- 2
- O&M Quick
- 2H00
- O&M Rating
- 94
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 108
Observation photos (2)

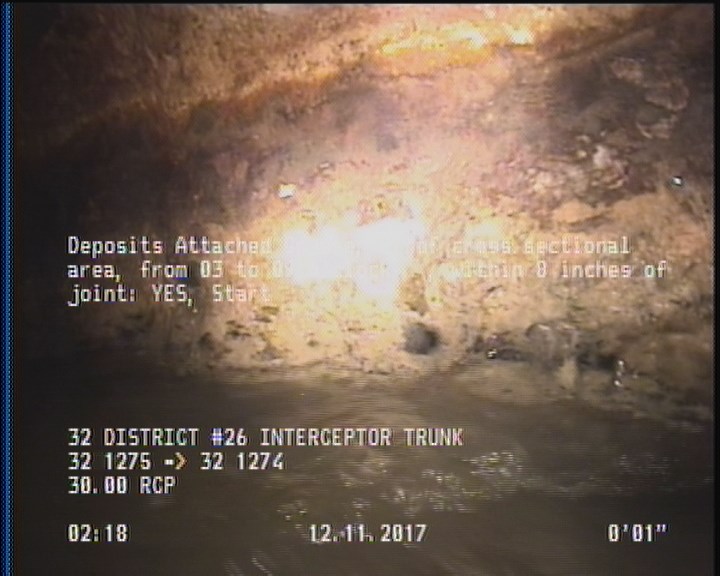

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

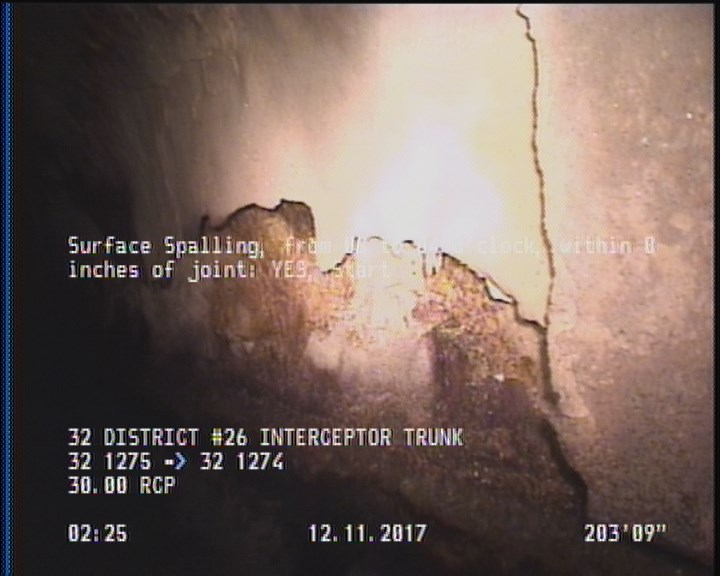

203.7 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | AMH | 32 1275 |
| 238.8 | DAGS | — |
| 2 | DAGS | — |
| 240.2 | AMH | 32 1274, RUN LIST STATES MH AT 192'. |
| 203.7 | SSS | — |
| 240.2 | MGO | COCKROACHES IN MANHOLE |
| 238.8 | SSS | — |
Properties (6)
- additional_info
- SC346413
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-11T02:14:19-08:00
- sewer_category
- Gravity
- year_laid
- 29654
