Wastewater/Activity/PacpInspection/1.0Dec 8, 2017, 09:06 AM
20 0783_20 0782 _12082017_010644.mp4
- Date
- 12/08/2017
- W/O
- 669088
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00952
- PipeID
- P26236
- Time
- 1:06 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5241
- Sewer Name
- 20 TRUNK "A" RELIEF
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_669088_TV20038_NOV2017
- Material
- FRPP
- Shape
- Circular
- Height
- 42 in.
- Width
- 42 in.
- Upstream MH
- 20 0783
- Downstream MH
- 20 0782
- Dir. of Survey
- Downstream
- Length Surveyed
- 464.2 ft.
- Total Length
- 464.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2U00
- O&M Rating
- 222
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 222
Observation photos (2)

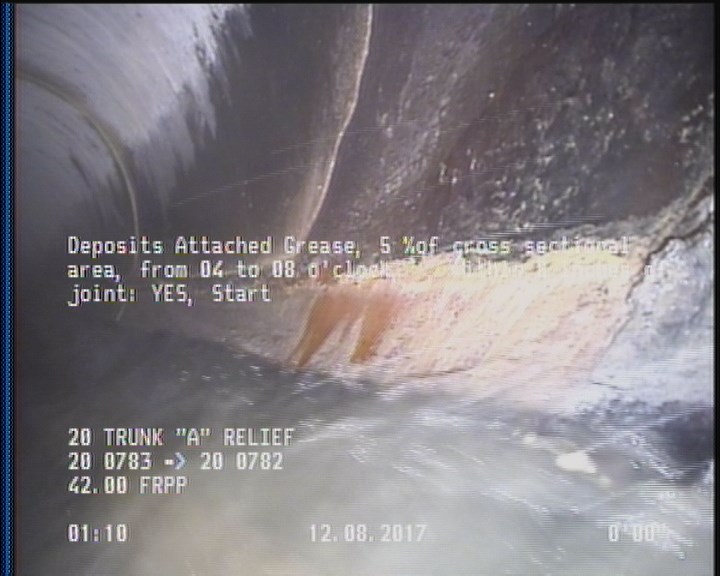

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

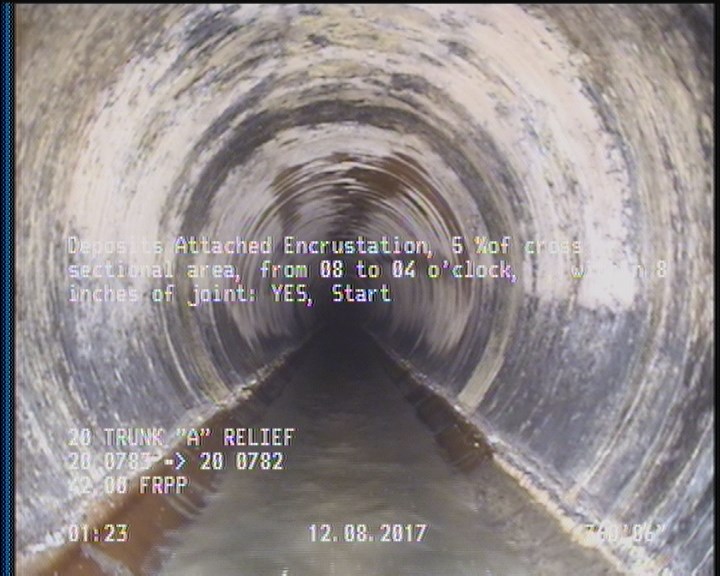

360.5 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 464.2 | AMH | 20 0782 |
| 453 | DAE | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 462.3 | DAGS | — |
| 360.5 | DAE | — |
| 0 | MWL | — |
| 0 | AMH | 20 0783 |
Properties (6)
- additional_info
- SC346412
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-12-08T01:06:22-08:00
- sewer_category
- Gravity
- year_laid
- 40169
