Wastewater/Activity/PacpInspection/1.0Nov 28, 2017, 06:31 AM
05 0414_05 0413_27112017_223256.mp4
- Date
- 11/27/2017
- W/O
- 668639
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00499
- PipeID
- P05642
- Time
- 10:31 PM
- Certificate
- 07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4846
- Sewer Name
- 05 OAK STREET-CENTER AVENUE RELIEF TRUNK
- City
- INGLEWOOD, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_668639_TV05188_NOV2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 05 0414
- Downstream MH
- 05 0413
- Dir. of Survey
- Downstream
- Length Surveyed
- 430.5 ft.
- Total Length
- 430.5 ft.
- Structural Index
- 2
- Structural Quick
- 2211
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

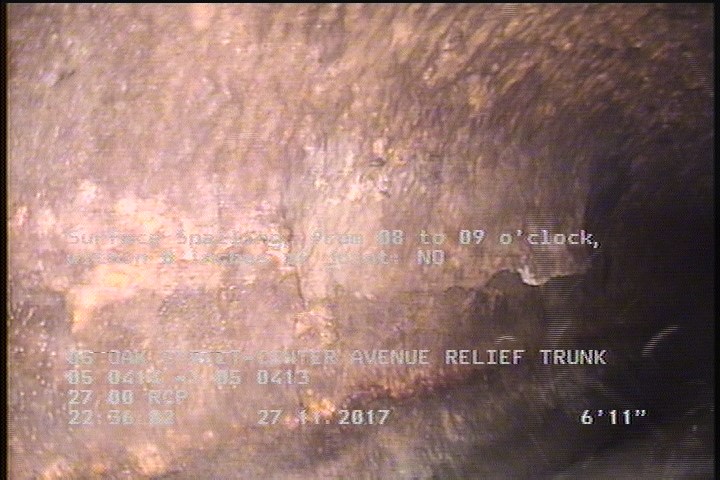

6.9 ft. - Surface Spalling, from 08 to 09 o'clock, within 8 inches of joint: NO

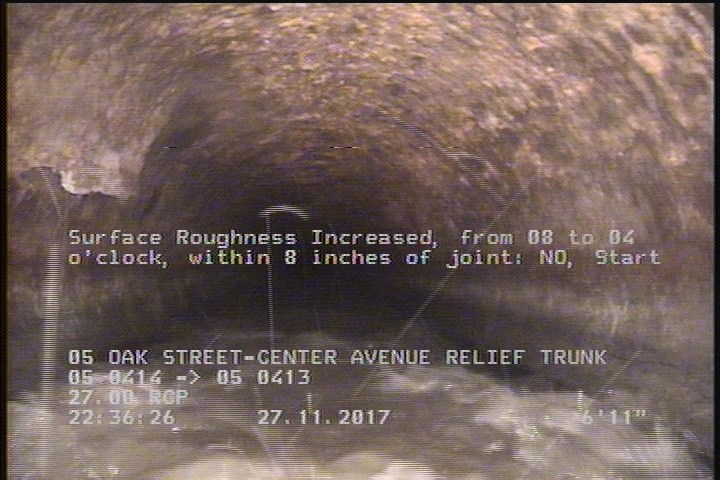

6.9 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

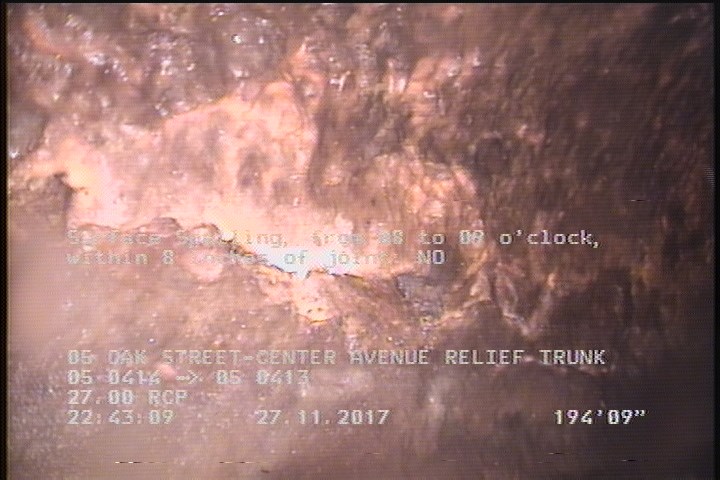

194.8 ft. - Surface Spalling, from 08 to 09 o'clock, within 8 inches of joint: NO
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 6.9 | SSS | — |
| 0 | AMH | 05 0414 |
| 194.8 | SSS | — |
| 430.5 | SRI | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 430.5 | AMH | 05 0413 |
| 6.9 | SRI | — |
Properties (5)
- additional_info
- SC349670
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-11-27T22:31:38-08:00
- sewer_category
- Gravity
