Wastewater/Activity/PacpInspection/1.0Nov 28, 2017, 09:52 AM
05 0449_05 0448 _28112017_015305.mp4
- Date
- 11/28/2017
- W/O
- 668639
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00499
- PipeID
- P05662
- Time
- 1:52 AM
- Certificate
- 07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4846
- Sewer Name
- 05 OAK STREET-CENTER AVENUE RELIEF TRUNK
- City
- INGLEWOOD, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_668639_TV05188_NOV2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 05 0449
- Downstream MH
- 05 0448
- Dir. of Survey
- Downstream
- Length Surveyed
- 383.4 ft.
- Total Length
- 383.4 ft.
- Structural Index
- 2
- Structural Quick
- 3111
- Structural Rating
- 4
- O&M Index
- 2
- O&M Quick
- 3122
- O&M Rating
- 7
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (3)

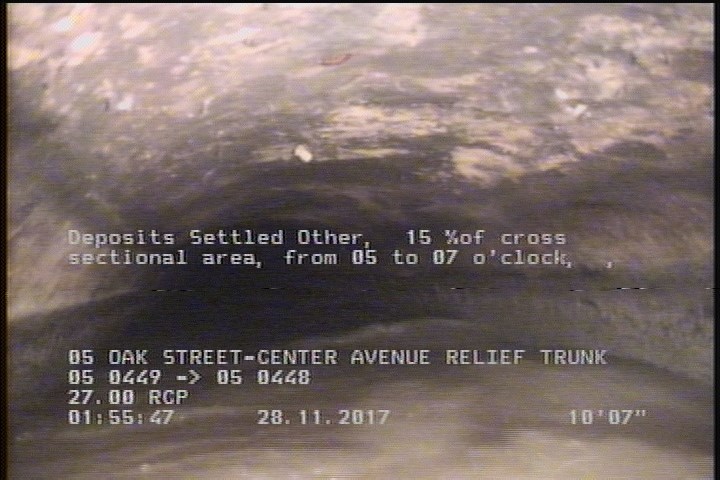

10.6 ft. - Deposits Settled Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - ROCKS

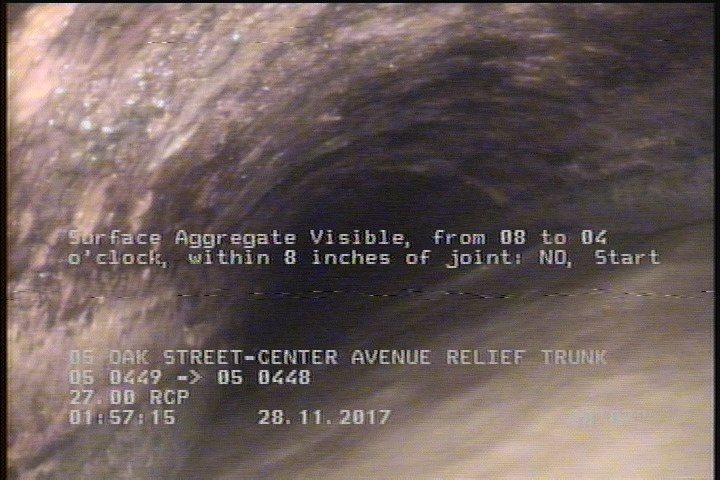

28.6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

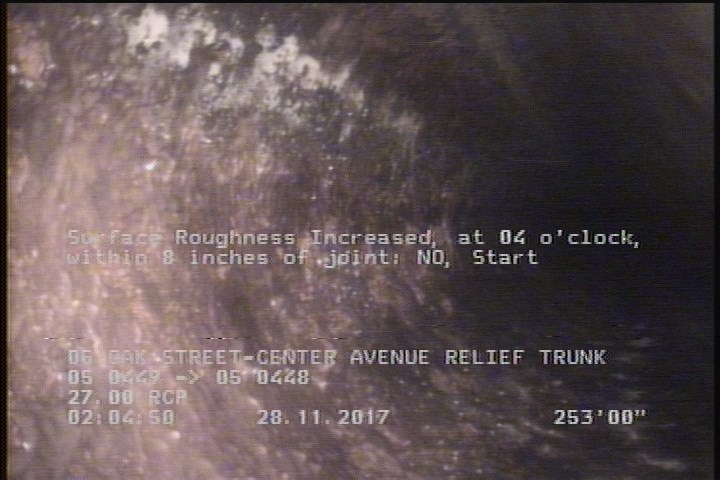

253 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: NO, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 383.4 | AMH | 05 0448 |
| 28.6 | SAV | — |
| 383.4 | SRI | — |
| 27.5 | DSZ | ROCKS |
| 253.8 | SAV | — |
| 253 | SRI | — |
| 0 | MWL | — |
| 10.6 | DSZ | ROCKS |
| 0 | MWM | — |
| 383.3 | DSGV | — |
| 0 | AMH | 05 0449 |
| 223.9 | DSGV | — |
| 198 | DSZ | ROCKS |
Properties (5)
- additional_info
- SC349670
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-11-28T01:52:21-08:00
- sewer_category
- Gravity
