Wastewater/Activity/PacpInspection/1.0Nov 15, 2017, 03:43 PM
H 0394_H 0393_291117_115947.mpg
- Date
- 11/15/2017
- W/O
- 630138
- Weather
- Dry
- Operator/Surveyor
- ERUIZ
- Sewer ID
- Z00177
- PipeID
- P10823
- Time
- 7:43 AM
- Certificate
- 123456
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5136
- Sewer Name
- H JOINT OUTFALL H - UNIT 5A
- City
- PICO RIVERA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_630138_TV18073_NOV2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 60 in.
- Width
- 60 in.
- Upstream MH
- H 0394
- Downstream MH
- H 0393
- Dir. of Survey
- Downstream
- Length Surveyed
- 641.1 ft.
- Total Length
- 641.1 ft.
- Structural Index
- 3
- Structural Quick
- 3X00
- Structural Rating
- 369
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 369
Observation photos (1)

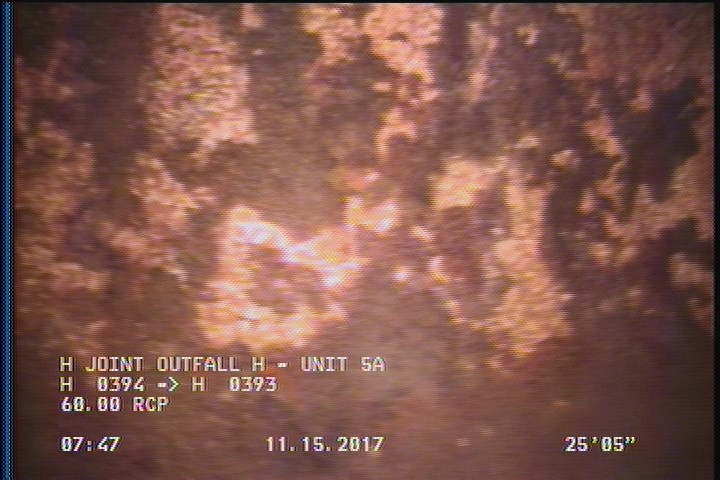

17.8 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 640 | MGO | SPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK |
| 0 | MWL | — |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 0 | AMH | H 0394 |
| 641.1 | AMH | H 0393 |
| 25.4 | MGO | MAGNEZIUM H.O COATING start |
| 17.8 | SAP | — |
| 323.2 | TFA | — |
| 634.2 | SAP | — |
| 641.1 | MGO | MAGNEZIUM H.O COATING finish |
Properties (5)
- additional_info
- SC348345
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-11-15T07:43:40-08:00
- sewer_category
- Gravity
