Wastewater/Activity/PacpInspection/1.0Nov 16, 2017, 06:23 PM
H 0380_H 0379_291117_115905.mpg
- Date
- 11/16/2017
- W/O
- 630138
- Weather
- Dry
- Operator/Surveyor
- ERUIZ
- Sewer ID
- Z00177
- PipeID
- P10809
- Time
- 10:23 AM
- Certificate
- 123456
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5137
- Sewer Name
- H JOINT OUTFALL H - UNIT 5A
- City
- PICO RIVERA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_630138_TV18073_NOV2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 66 in.
- Width
- 66 in.
- Upstream MH
- H 0380
- Downstream MH
- H 0379
- Dir. of Survey
- Downstream
- Length Surveyed
- 713.1 ft.
- Total Length
- 713.1 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (1)

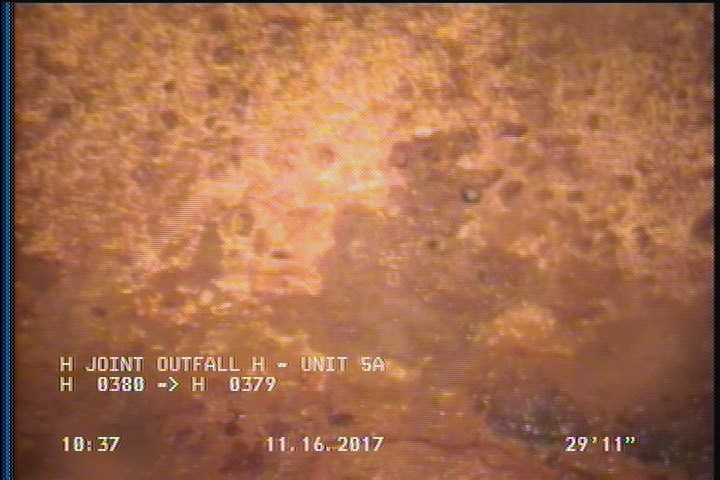

29.9 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 713.1 | AMH | H 0379 |
| 712 | MGO | SPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK |
| 703.3 | SAP | — |
| 29.9 | SAP | — |
| 0 | MWL | — |
| 29.9 | MGO | MAGNEZIUM H.O COATING start |
| 703.3 | MGO | MAGNEZIUM H.O COATING finish |
| 0 | MWM | — |
| 0 | AMH | H 0380 |
Properties (4)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-11-16T10:23:48-08:00
- sewer_category
- Gravity
