Wastewater/Activity/PacpInspection/1.0Mar 24, 2016, 07:05 AM
21 0787A_21 0787_20160324_001432.mp4
- Date
- 03/24/2016
- W/O
- 557615
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00773
- PipeID
- P15902
- Time
- 12:05 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3235
- Sewer Name
- 21 LA VERNE TRUNK, SECTION 3
- City
- POMONA, CA
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_557615_TV21048_2016MAR
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 21 0787A
- Downstream MH
- 21 0787
- Dir. of Survey
- Downstream
- Length Surveyed
- 98.8 ft.
- Total Length
- 98.8 ft.
- Structural Index
- 3
- Structural Quick
- 4121
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

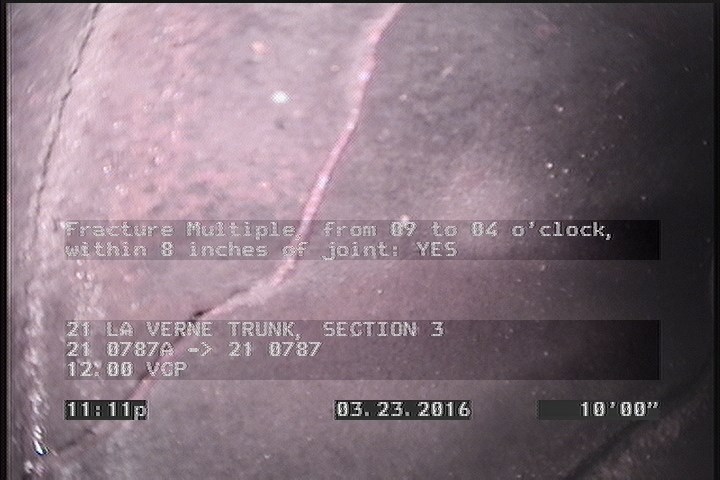

10 ft. - Fracture Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

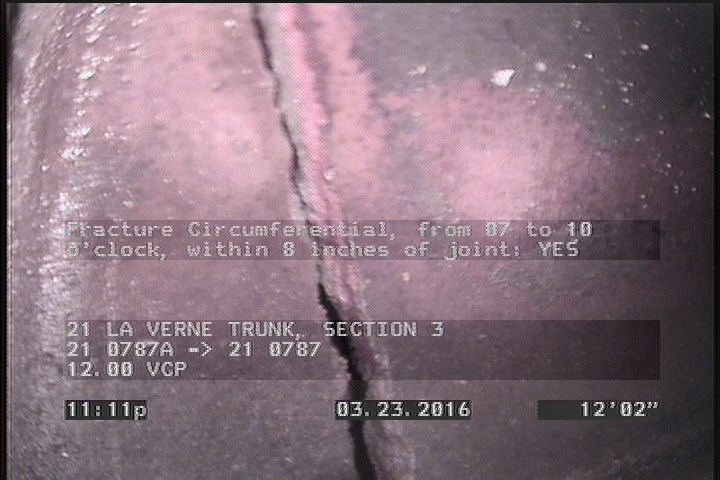

12.2 ft. - Fracture Circumferential, from 07 to 10 o'clock, within 8 inches of joint: YES

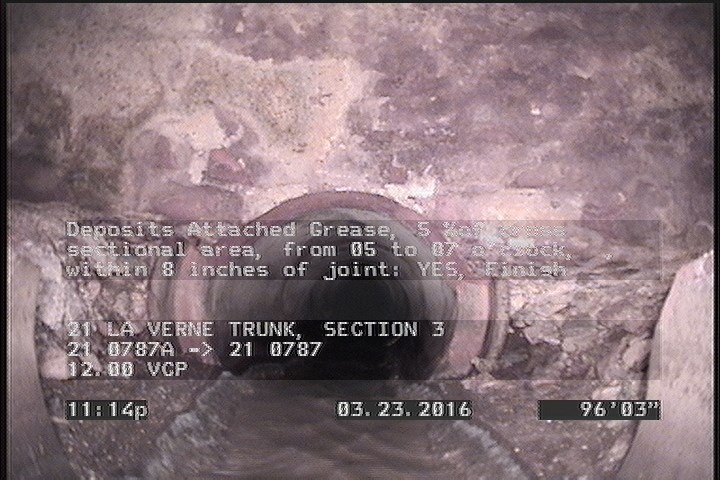

96.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 98.8 | AMH | 21 0787 |
| 0 | MWL | — |
| 52 | TBA | — |
| 10 | FM | — |
| 12.2 | FC | — |
| 96.2 | DAGS | — |
| 7.1 | DAGS | — |
| 0 | AMH | 21 0787A |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC305326
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-03-24T00:05:52-07:00
