Wastewater/Activity/PacpInspection/1.0Jul 22, 2016, 10:53 AM
02 1786_02 1785 _20160722_035421.mp4
- Date
- 07/22/2016
- W/O
- 582912
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00275
- PipeID
- P04137
- Time
- 3:53 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3620
- Sewer Name
- 02 INDIANA STREET RELIEF TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 07A
- Purpose
- Routine Assessment
- Project
- WO_582912_TV02067_JULY2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 02 1785
- Downstream MH
- 02 1786
- Dir. of Survey
- Upstream
- Length Surveyed
- 293.1 ft.
- Total Length
- 293.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2V00
- O&M Rating
- 226
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 226
Observation photos (3)
0 ft. - General Observation - COCKROACHES IN MANHOLE
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

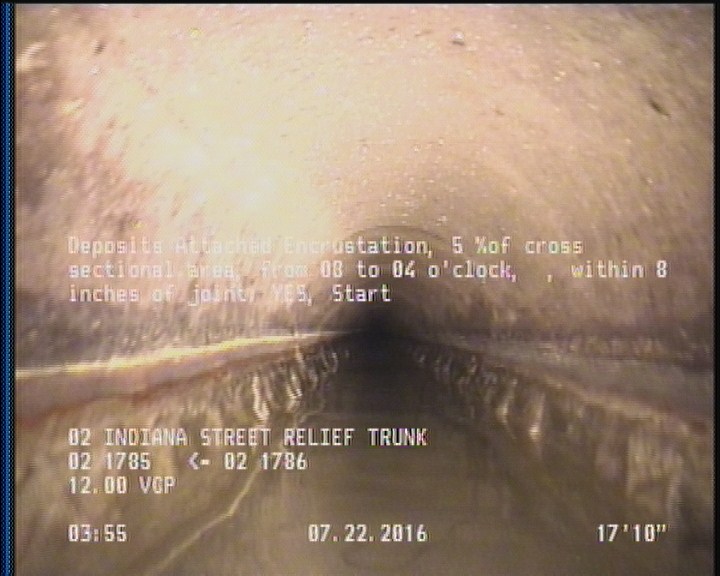

14.9 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 79.4 | TFC | — |
| 0 | MWL | — |
| 162 | TFA | — |
| 291 | DAE | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWM | — |
| 293.1 | AMH | 02 1786 |
| 0 | AMH | 02 1785 |
| 2 | DAGS | — |
| 248.4 | TF | — |
| 126.4 | TF | — |
| 14.9 | DAE | — |
| 291 | DAGS | — |
| 40.5 | TF | — |
| 281.4 | TFA | — |
| 182.6 | TFA | — |
Properties (4)
- additional_info
- SC305799
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-07-22T03:53:36-07:00
