Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 25, 2016, 11:21 AM

  • 02 1792_02 2411 _25072016_042232.mp4

Date
07/25/2016
W/O
582912
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00274
PipeID
P21177
Time
4:21 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3621
Sewer Name
02 INDIANA STREET P.P. CONNECTIONS
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
07A
Purpose
Routine Assessment
Project
WO_582912_TV02067_JULY2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
02 1792
Downstream MH
02 2411
Dir. of Survey
Downstream
Length Surveyed
133.9 ft.
Total Length
133.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
332D
O&M Rating
61
Overall Index
2
Overall Quick
—
Overall Rating
61
Pipe schematic from manhole 02 1792 to 02 2411
MH: 02 1792MH: 02 2411downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 17920 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start118.3 ft. DSZ - Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start133.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish133.9 ft. DSZ - Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish133.9 ft. AMH - Downstream Manhole, Survey Ends - 02 2411133.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 12 O'CLOCK133.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (4)

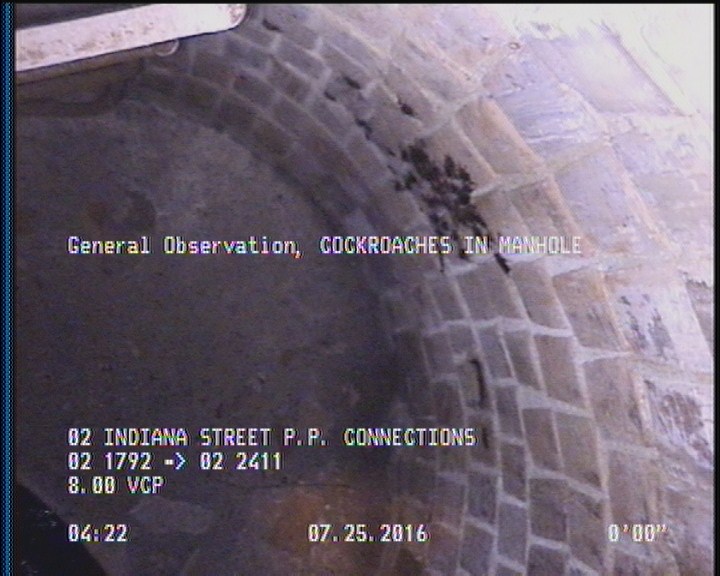

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

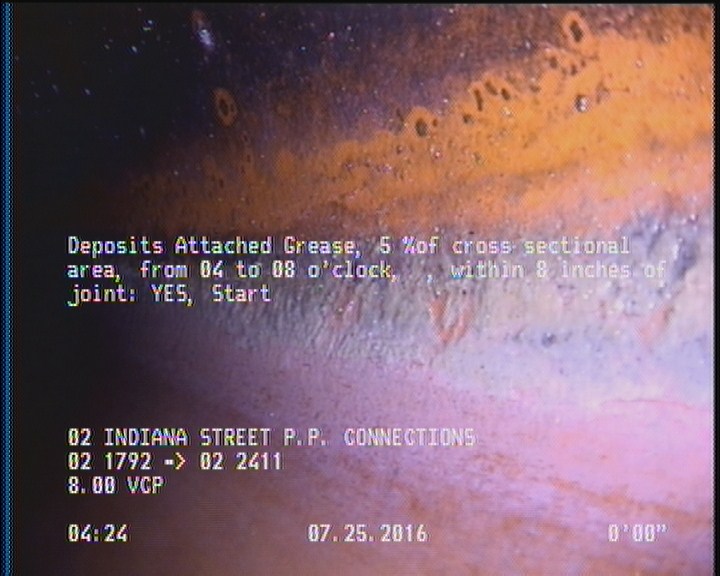

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

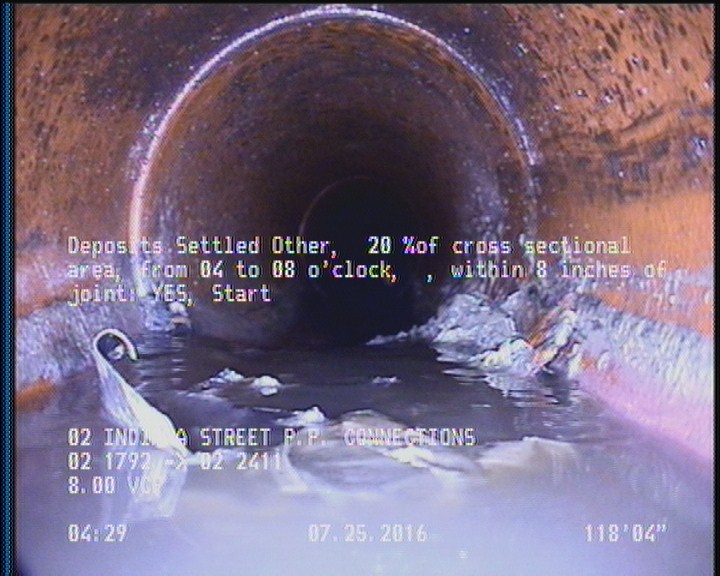

  • Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    118.3 ft. - Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

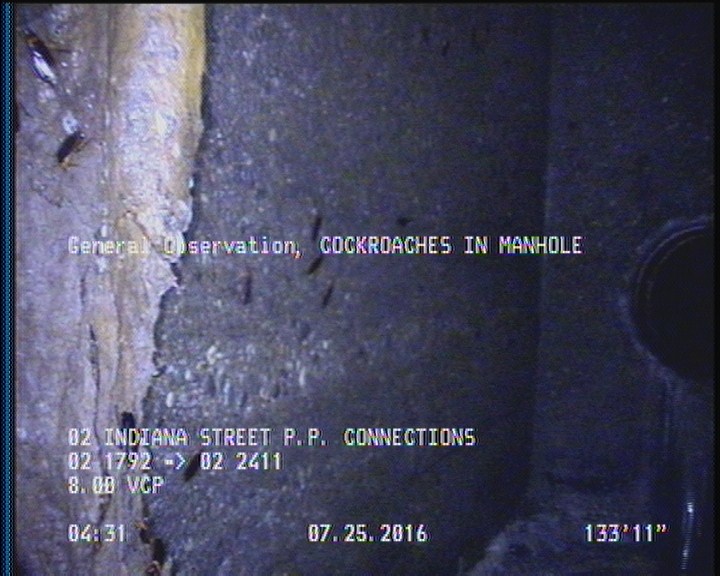

  • General Observation - COCKROACHES IN MANHOLE

    133.9 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P21177Work order 582912

Observations (11)

DistanceCodeObservation
2DAGS—
0MWM—
0AMH02 1792
133.8DAGS—
0MWL—
133.9DSZ—
133.9AMH02 2411
118.3DSZ—
133.9MGOACTIVE CONNECTION AT MH 12 O'CLOCK
0MGOCOCKROACHES IN MANHOLE
133.9MGOCOCKROACHES IN MANHOLE

Properties (4)

additional_info
SC305800
custom_field_two
4
customer
LACSD
datetime
2016-07-25T04:21:56-07:00
