Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 11, 2016, 07:32 AM

  • 30 0323_30 0225 _08112016_003434.mp4

Date
08/11/2016
W/O
579962
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00884
PipeID
P17925
Time
12:32 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3632
Sewer Name
30 VIA CAMPESINA TRUNK
City
PALOS VERDES ESTATES
Loc. details
Sidewalk
Location Code
F
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
09
Purpose
Routine Assessment
Project
WO_579962_TV30062_JULY2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
30 0225
Downstream MH
30 0323
Dir. of Survey
Upstream
Length Surveyed
43.3 ft.
Total Length
43.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3812
O&M Rating
26
Overall Index
3
Overall Quick
—
Overall Rating
26
Pipe schematic from manhole 30 0225 to 30 0323
MH: 30 0225MH: 30 0323upstream0 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish0 ft. MSA - Survey Abandoned - DUE TO DEBRIS0 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Finish5.5 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start41.3 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start43.3 ft. AMH - Downstream Manhole, Survey Begins - 30 022543.3 ft. MWL - Water Level, 15 %of cross sectional area43.3 ft. MWM - Water Mark, 20 %of cross sectional area43.3 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK

Observation photos (3)

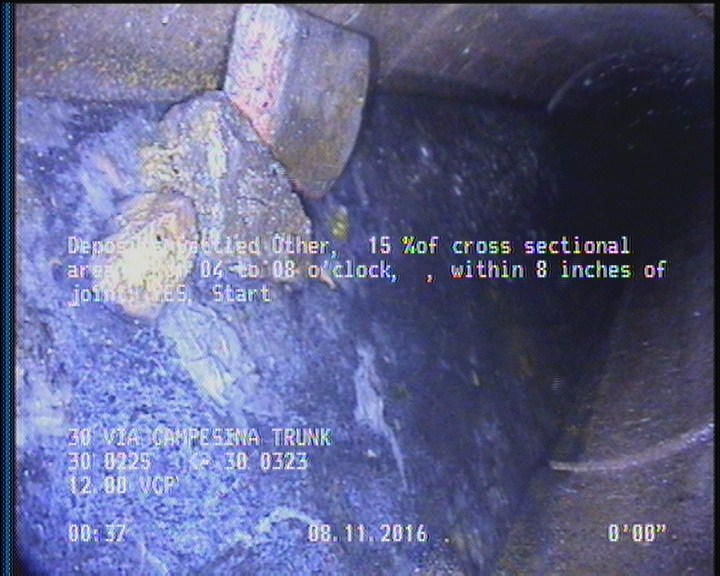

  • Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

    37.8 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

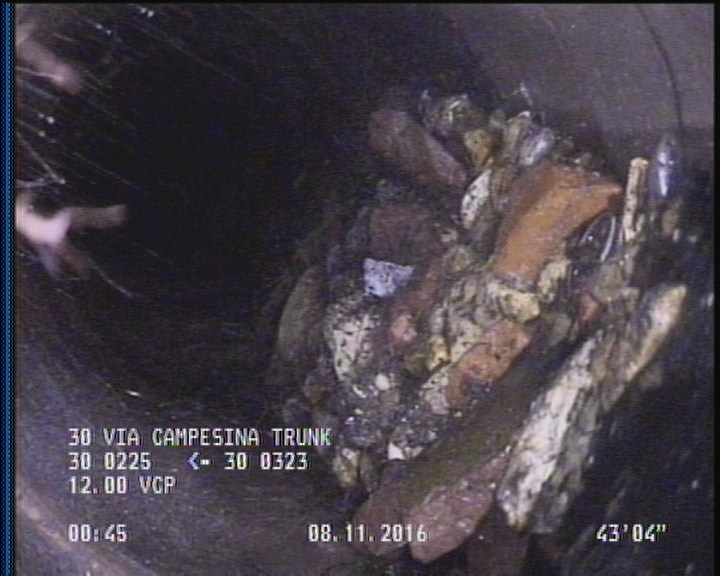

  • Survey Abandoned - DUE TO DEBRIS

    43.3 ft. - Survey Abandoned - DUE TO DEBRIS

All inspections of P17925Work order 579962

Observations (9)

DistanceCodeObservation
0AMH30 0225
43.3DSZ—
37.8RFJ—
43.3MSADUE TO DEBRIS
0MWL—
2DSZ—
0MWM—
43.3RFJ—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK

Properties (4)

additional_info
SC306066
custom_field_two
5
customer
LACSD
datetime
2016-08-11T00:32:40-07:00
