Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 22, 2017, 05:31 AM

  • 02 0716A_02 0716_21092017_223152.mpg

Date
09/21/2017
W/O
657991
Weather
Dry
Operator/Surveyor
CORTEZ ESTEBAN
Sewer ID
Z00294
PipeID
P03268
Time
10:31 PM
Certificate
U-209-8148
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4933
Sewer Name
02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
City
DOWNEY
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
29
Purpose
Routine Assessment
Project
WO_657991_TV02264_SEP2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 0716A
Downstream MH
02 0716
Dir. of Survey
Downstream
Length Surveyed
190.9 ft.
Total Length
190.9 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 02 0716A to 02 0716
MH: 02 0716AMH: 02 0716downstream0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 0716A0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH14.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"17.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"127.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"130.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"166.5 ft. CM - Crack Multiple, from 09 to 11 o'clock, within 8 inches of joint: YES168.2 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start171.3 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish171.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start185 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish190.9 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH190.9 ft. AMH - Downstream Manhole, Survey Ends - 02 0716

Observation photos (3)

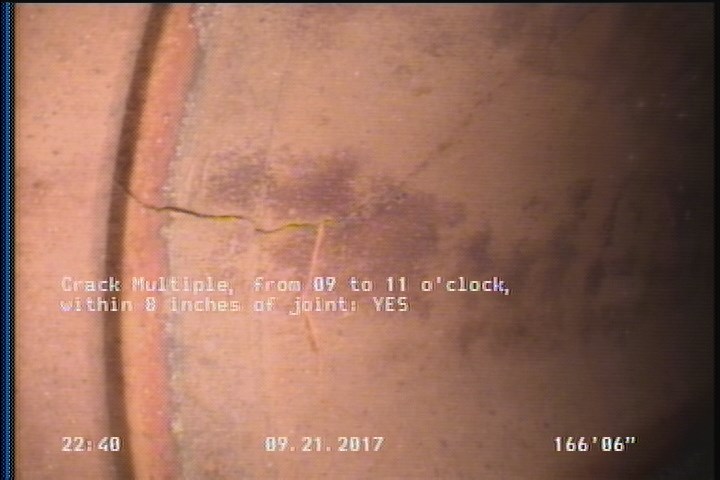

  • Crack Multiple, from 09 to 11 o'clock, within 8 inches of joint: YES

    166.5 ft. - Crack Multiple, from 09 to 11 o'clock, within 8 inches of joint: YES

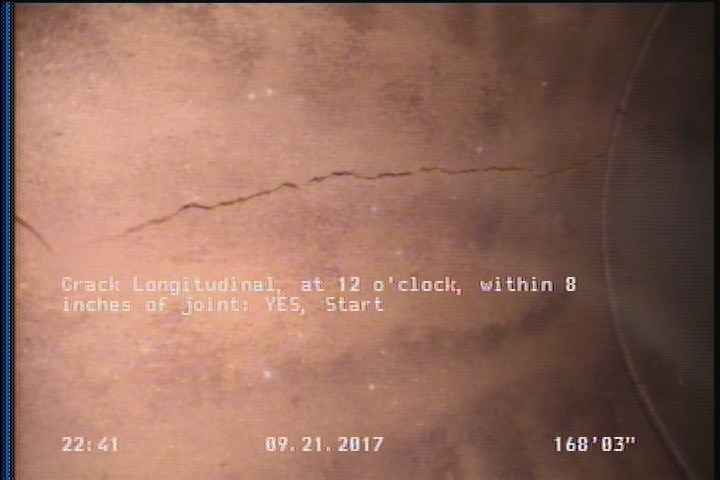

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    168.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

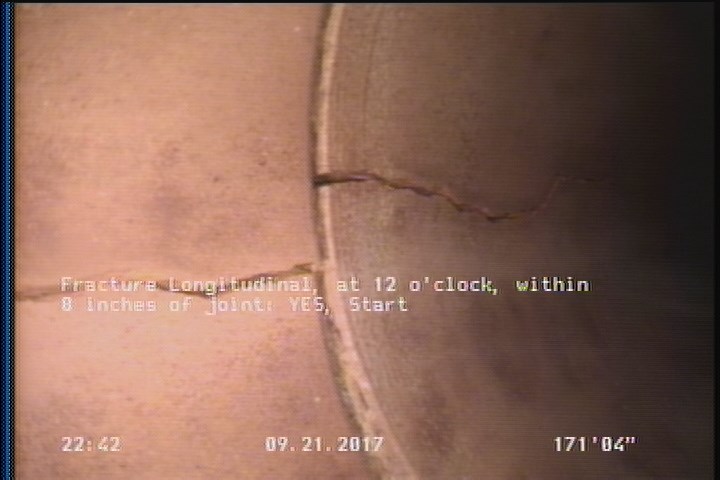

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    171.4 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

All inspections of P03268Work order 657991

Observations (15)

DistanceCodeObservation
17.6TFC—
127.2TFC—
166.5CM—
0MWL—
14.8TFC—
190.9MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
185FL—
171.4FL—
0AMH02 0716A
171.3CL—
168.2CL—
190.9AMH02 0716
0MWM—
130.4TFC—
0MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH

Properties (5)

additional_info
SC345841
custom_field_two
3
customer
LACSD
datetime
2017-09-21T22:31:17-07:00
sewer_category
Gravity
