Wastewater/Activity/PacpInspection/1.0Sep 22, 2017, 06:40 AM
02 0714B_02 0714A_21092017_234033.mpg
- Date
- 09/21/2017
- W/O
- 657991
- Weather
- Dry
- Operator/Surveyor
- CORTEZ ESTEBAN
- Sewer ID
- Z00294
- PipeID
- P18784
- Time
- 11:40 PM
- Certificate
- U-209-8148
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4933
- Sewer Name
- 02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
- City
- DOWNEY
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 29
- Purpose
- Routine Assessment
- Project
- WO_657991_TV02264_SEP2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 0714B
- Downstream MH
- 02 0714A
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

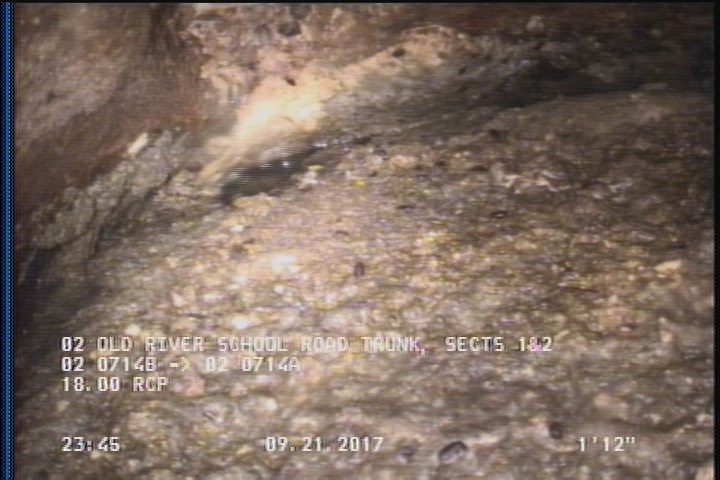

2 ft. - Survey Abandoned - VIEW OF THE D/S SIPHON FROM THE U/S MH

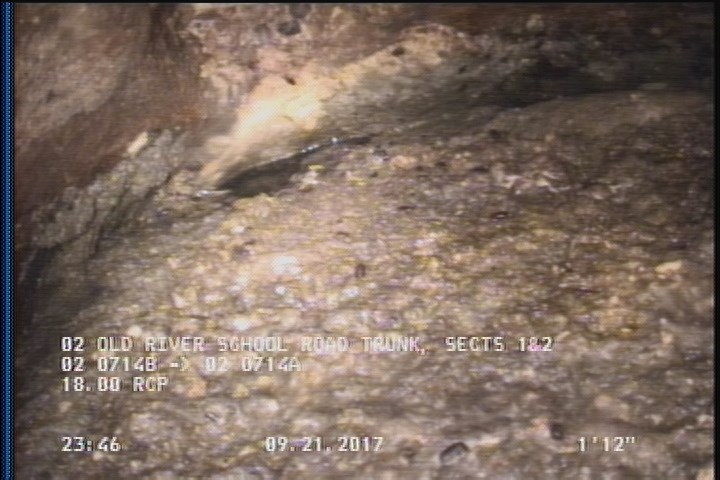

2 ft. - Deposits Settled Other, 100 %of cross sectional area, from 12 to 12 o'clock, , within 8 inches of joint: YES - DEBRIS
Observations (3)
| Distance | Code | Observation |
|---|---|---|
| 2 | MSA | VIEW OF THE D/S SIPHON FROM THE U/S MH |
| 2 | DSZ | DEBRIS |
| 0 | AMH | 02 0714B |
Properties (5)
- additional_info
- SC345841
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-09-21T23:40:09-07:00
- sewer_category
- Siphon
