Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 7, 2015, 12:01 PM

  • E 0121_E 0120_07122015_042050.mp4

Date
12/07/2015
W/O
B140721
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00032
PipeID
P11347
Time
4:01 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K2839
Sewer Name
E JOINT OUTFALL E - UNIT 5
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
WO_520989_TV01102_SEPT2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Upstream MH
E 0121
Downstream MH
E 0120
Dir. of Survey
Downstream
Length Surveyed
494.3 ft.
Total Length
494.3 ft.
Structural Index
3
Structural Quick
3O00
Structural Rating
237
O&M Index
2
O&M Quick
412S
O&M Rating
200
Overall Index
2
Overall Quick
—
Overall Rating
437
Pipe schematic from manhole E 0121 to E 0120
MH: E 0121MH: E 0120downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - E 01210 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. MGO - General Observation - MAG COATING 60%50.5 ft. IR - Infiltration Runner, at 09 o'clock, within 8 inches of joint: YES97.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start493 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish493 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish494.3 ft. AMH - Downstream Manhole, Survey Ends - E 0120

Observation photos (2)

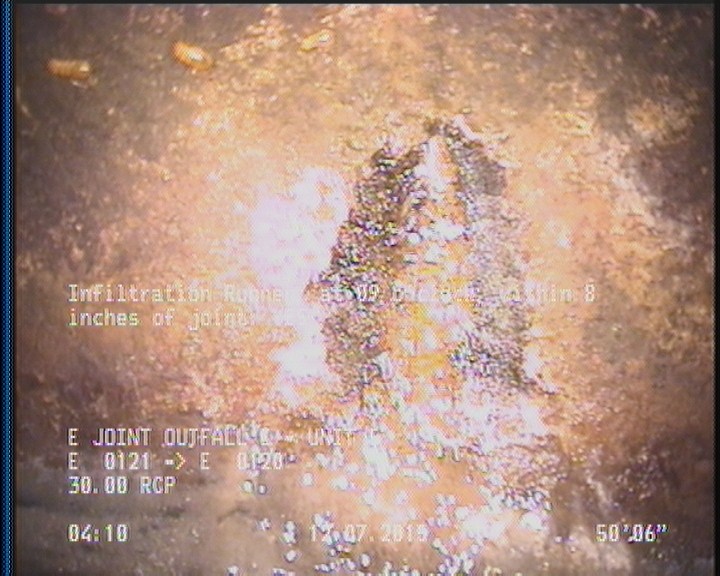

  • Infiltration Runner, at 09 o'clock, within 8 inches of joint: YES

    50.5 ft. - Infiltration Runner, at 09 o'clock, within 8 inches of joint: YES

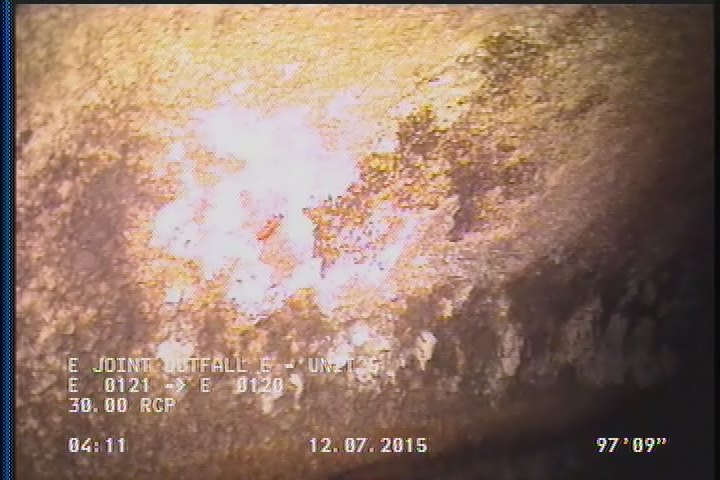

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    97.7 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P11347Work order B140721

Observations (10)

DistanceCodeObservation
0MWL—
2DAGS—
493SAV—
493DAGS—
0AMHE 0121
50.5IR—
0MWM—
494.3AMHE 0120
97.7SAV—
2MGOMAG COATING 60%

Properties (6)

additional_info
SC204175
custom_field_two
3
customer
LACSD
datetime
2015-12-07T04:01:11-08:00
sewer_category
GRAVITY
year_laid
19870402
