Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 10, 2015, 07:26 AM

  • 18 0235_18 0234_20151109_233957.mp4

Date
11/09/2015
W/O
531089
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00674
PipeID
P14063
Time
11:26 PM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2858
Sewer Name
18 EAST IMPERIAL HIGHWAY TRUNK
City
SANTA FE SPRINGS, CA
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
26
Purpose
Routine Assessment
Project
WO_531089_TV18005_OCT2015
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
18 0235
Downstream MH
18 0234
Dir. of Survey
Downstream
Length Surveyed
191.7 ft.
Total Length
191.7 ft.
Structural Index
3
Structural Quick
3300
Structural Rating
9
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
2
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 18 0235 to 18 0234
MH: 18 0235MH: 18 0234downstream0 ft. VC - Vermin Cockroach0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 0235 (2326)2.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start32.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"114.4 ft. CM - Crack Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES134.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"150 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 4"160.7 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES172.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start188.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish188.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish191.7 ft. MGO - General Observation - MH IS OFFSET191.7 ft. AMH - Downstream Manhole, Survey Ends - 18 0234 (2339)

Observation photos (3)

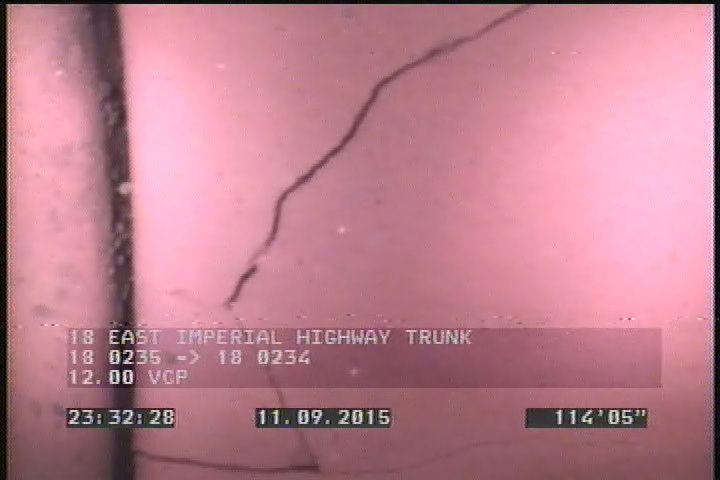

  • Crack Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES

    114.4 ft. - Crack Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES

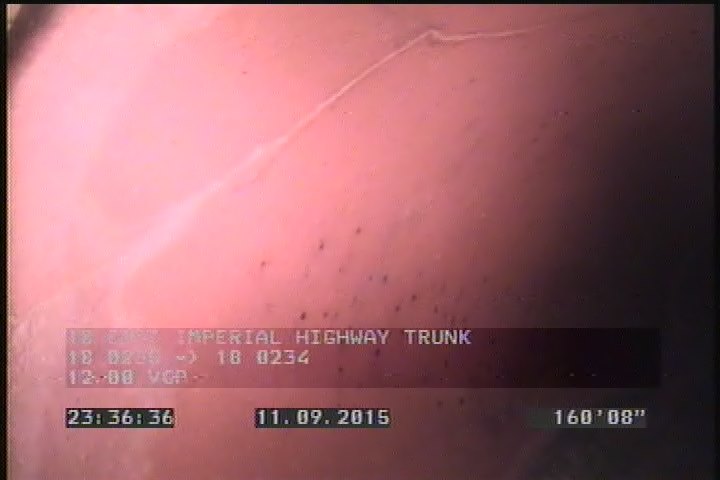

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    160.7 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

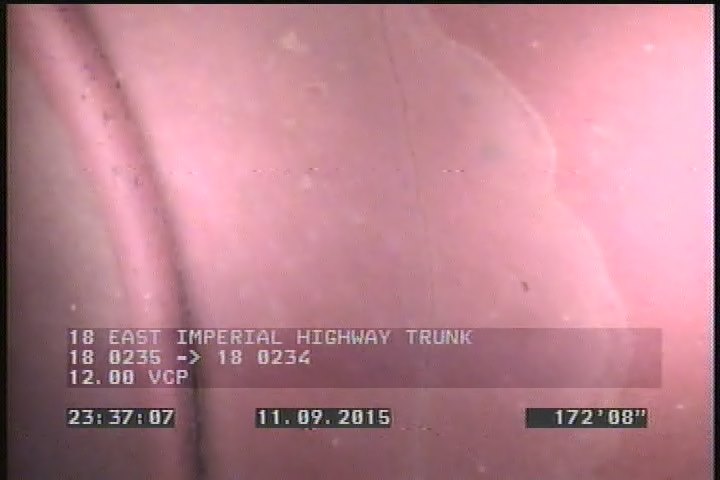

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    172.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P14063Work order 531089

Observations (15)

DistanceCodeObservation
0VC—
0MWM—
0MWL—
188.2CM—
191.7MGOMH IS OFFSET
0AMH18 0235 (2326)
160.7CM—
172.6CM—
2.2DAGS—
32.9TFC—
150TFA—
114.4CM—
134.8TFC—
191.7AMH18 0234 (2339)
188.2DAGS—

Properties (5)

additional_info
SC205624
custom_field_two
3
customer
LACSD
datetime
2015-11-09T23:26:00-08:00
sewer_category
GRAVITY
