Wastewater/Activity/PacpInspection/1.0Nov 10, 2015, 07:08 AM
18 0236_18 0235_20151109_232342.mp4
- Date
- 11/09/2015
- W/O
- 531089
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00674
- PipeID
- P14064
- Time
- 11:08 PM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2858
- Sewer Name
- 18 EAST IMPERIAL HIGHWAY TRUNK
- City
- SANTA FE SPRINGS, CA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- WO_531089_TV18005_OCT2015
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 18 0236
- Downstream MH
- 18 0235
- Dir. of Survey
- Downstream
- Length Surveyed
- 262.8 ft.
- Total Length
- 262.8 ft.
- Structural Index
- 3
- Structural Quick
- 3221
- Structural Rating
- 8
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (3)

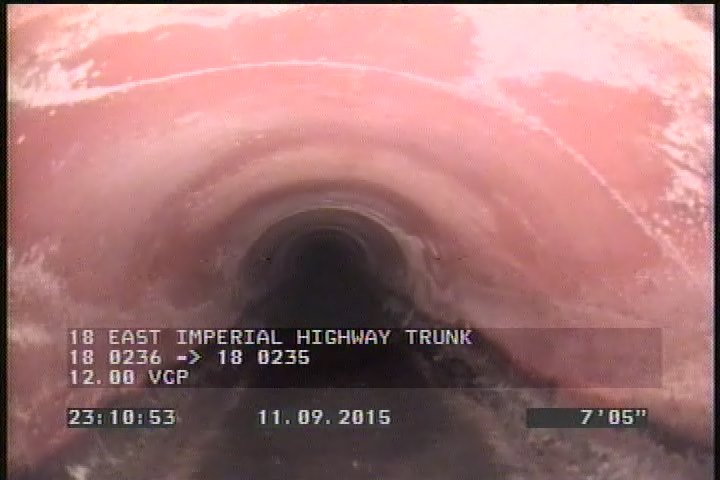

7.6 ft. - Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES

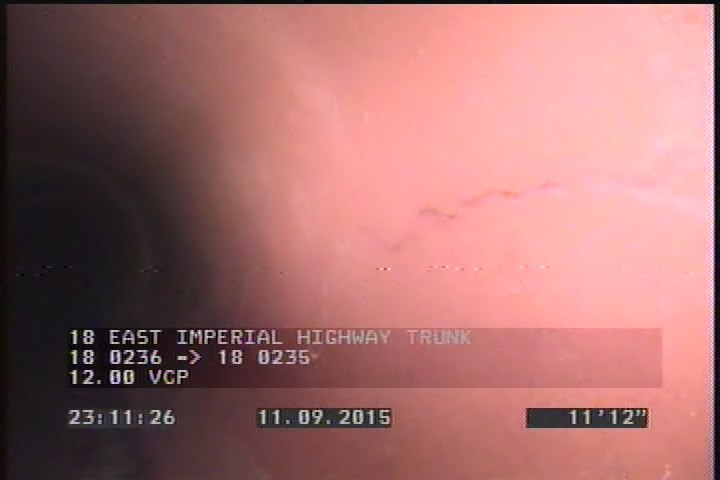

12 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

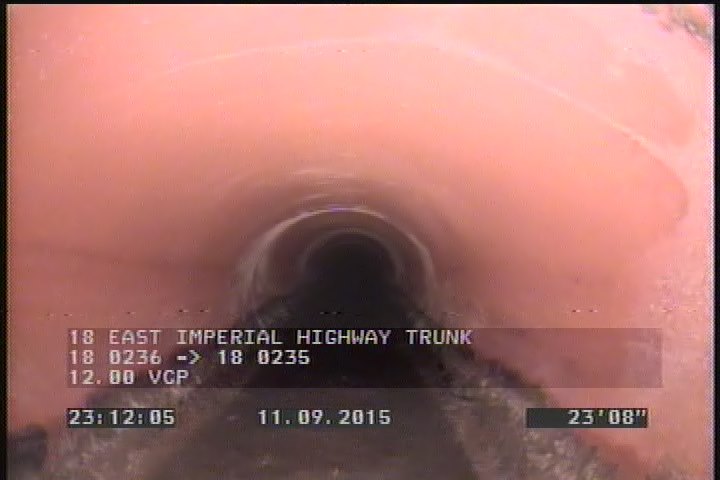

23.6 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 88.6 | TFA | — |
| 259 | CM | — |
| 0 | MWM | — |
| 143.6 | TFA | — |
| 7.6 | CM | — |
| 23.6 | CM | — |
| 195 | TFC | — |
| 245.8 | TFC | — |
| 0 | MWL | — |
| 262.8 | AMH | 18 0235 (2323) |
| 262.8 | VC | — |
| 37.7 | TFA | — |
| 259.1 | DAGS | — |
| 0 | AMH | 18 0236 (2307) |
| 2.9 | DAGS | — |
| 12 | CL | — |
Properties (5)
- additional_info
- SC205624
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2015-11-09T23:08:00-08:00
- sewer_category
- GRAVITY
