Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 10, 2015, 08:15 AM

  • 18 0238_18 0237_20151110_003430.mp4

Date
11/10/2015
W/O
531089
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00674
PipeID
P14066
Time
12:15 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2858
Sewer Name
18 EAST IMPERIAL HIGHWAY TRUNK
City
SANTA FE SPRINGS, CA
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
26
Purpose
Routine Assessment
Project
WO_531089_TV18005_OCT2015
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
18 0237
Downstream MH
18 0238
Dir. of Survey
Upstream
Length Surveyed
280.2 ft.
Total Length
280.2 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 18 0237 to 18 0238
MH: 18 0237MH: 18 0238upstream0 ft. AMH - Upstream Manhole, Survey Ends - 18 0238 (0034)0 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK4.2 ft. CM - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES, Finish17.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"68.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"119.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"165.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start170.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"214.8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES219.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"272.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"280.2 ft. MWM - Water Mark, 20 %of cross sectional area280.2 ft. AMH - Downstream Manhole, Survey Begins - 18 0237 (0016)280.2 ft. MWL - Water Level, 15 %of cross sectional area280.2 ft. MGO - General Observation - LATERAL AT MH 3 0CLOCK

Observation photos (2)

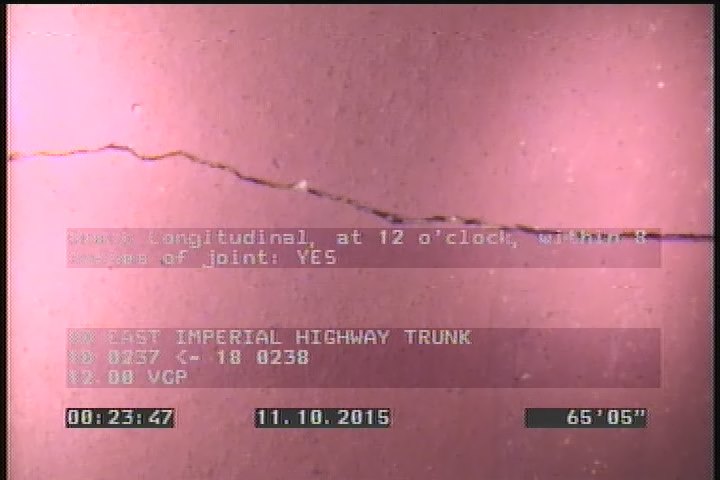

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    65.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

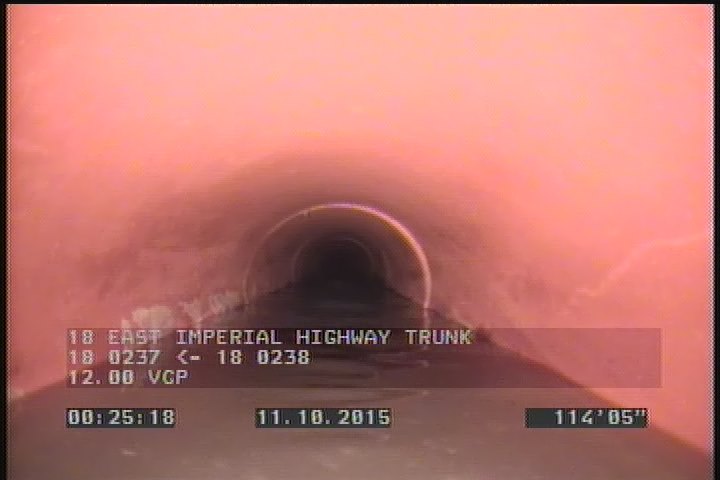

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    114.9 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P14066Work order 531089

Observations (15)

DistanceCodeObservation
65.4CL—
276CM—
0MWM—
280.2AMH18 0238 (0034)
109.5TFA—
262.8TFC—
280.2MGOLATERAL AT MH 9 OCLOCK
0AMH18 0237 (0016)
160.9TFA—
60.3TFC—
0MWL—
212TFC—
8.1TFA—
114.9CM—
0MGOLATERAL AT MH 3 0CLOCK

Properties (5)

additional_info
SC205624
custom_field_two
3
customer
LACSD
datetime
2015-11-10T00:15:39-08:00
sewer_category
GRAVITY
