Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 10, 2015, 11:35 AM

  • 18 0245_18 0244_20151110_034831.mp4

Date
11/10/2015
W/O
531089
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00674
PipeID
P14073
Time
3:35 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2858
Sewer Name
18 EAST IMPERIAL HIGHWAY TRUNK
City
SANTA FE SPRINGS, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
26
Purpose
Routine Assessment
Project
WO_531089_TV18005_OCT2015
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
18 0244
Downstream MH
18 0245
Dir. of Survey
Upstream
Length Surveyed
300.2 ft.
Total Length
300.2 ft.
Structural Index
4
Structural Quick
4200
Structural Rating
8
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 18 0244 to 18 0245
MH: 18 0244MH: 18 0245upstream0 ft. VC - Vermin Cockroach0 ft. AMH - Upstream Manhole, Survey Ends - 18 0245 (0348)1.2 ft. CH2 - Crack Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish63.8 ft. CH2 - Crack Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start68.9 ft. CH2 - Crack Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish109.3 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 4"292 ft. CH2 - Crack Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start299.8 ft. MGO - General Observation - LATERAL AT MH 3 0CLOCK300.1 ft. MWM - Water Mark, 5 %of cross sectional area300.2 ft. MWL - Water Level, 5 %of cross sectional area300.2 ft. AMH - Downstream Manhole, Survey Begins - 18 0244 (0335)

Observation photos (2)

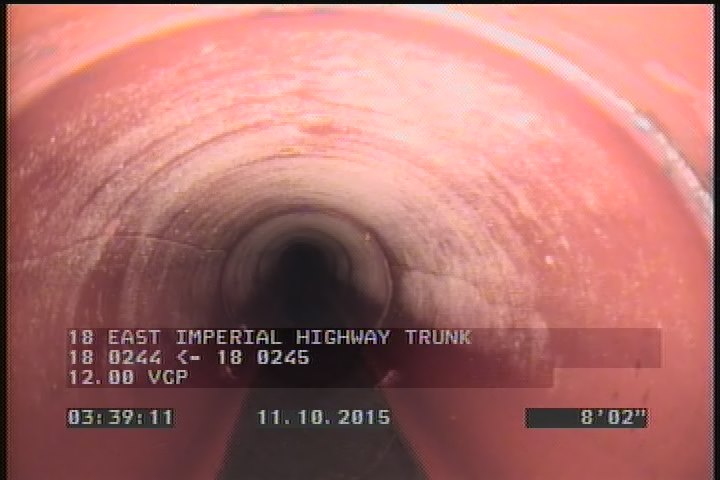

  • Crack Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    8.2 ft. - Crack Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

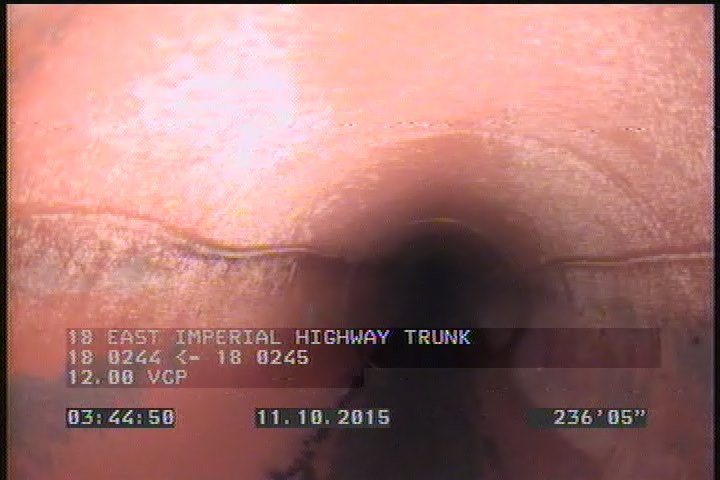

  • Crack Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    236.4 ft. - Crack Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P14073Work order 531089

Observations (11)

DistanceCodeObservation
0MWL—
300.2VC—
0.4MGOLATERAL AT MH 3 0CLOCK
190.9TF—
236.4CH2—
8.2CH2—
299CH2—
0AMH18 0244 (0335)
231.3CH2—
0.1MWM—
300.2AMH18 0245 (0348)

Properties (5)

additional_info
SC205624
custom_field_two
2
customer
LACSD
datetime
2015-11-10T03:35:00-08:00
sewer_category
GRAVITY
