Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 10, 2015, 11:49 AM

  • 18 0246_18 0245_20151110_040102.mp4

Date
11/10/2015
W/O
531089
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00674
PipeID
P14074
Time
3:49 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2858
Sewer Name
18 EAST IMPERIAL HIGHWAY TRUNK
City
SANTA FE SPRINGS, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
26
Purpose
Routine Assessment
Project
WO_531089_TV18005_OCT2015
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
18 0245
Downstream MH
18 0246
Dir. of Survey
Upstream
Length Surveyed
303 ft.
Total Length
303 ft.
Structural Index
3
Structural Quick
4221
Structural Rating
10
O&M Index
1
O&M Quick
1200
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 18 0245 to 18 0246
MH: 18 0245MH: 18 0246upstream0 ft. AMH - Upstream Manhole, Survey Ends - 18 0246 (0400)0 ft. VC - Vermin Cockroach4.1 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish49 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 4"170.6 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start174.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"203.1 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish261.1 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start294.3 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES294.3 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 4"303 ft. MWM - Water Mark, 10 %of cross sectional area303 ft. VC - Vermin Cockroach303 ft. AMH - Downstream Manhole, Survey Begins - 18 0245 (0349)303 ft. MWL - Water Level, 5 %of cross sectional area

Observation photos (3)

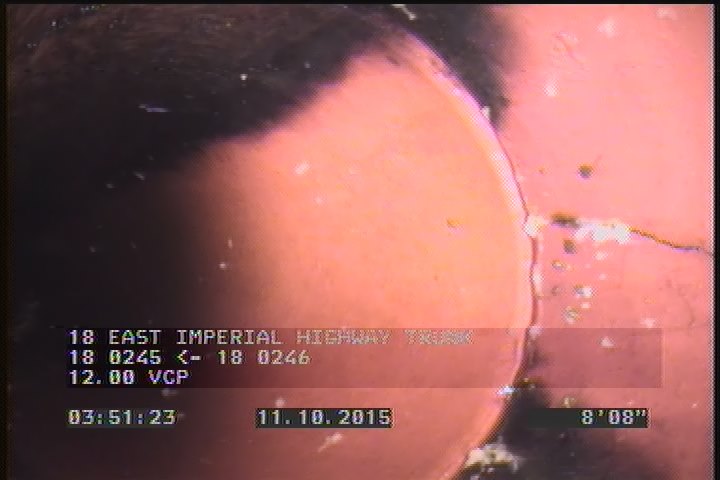

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    8.7 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

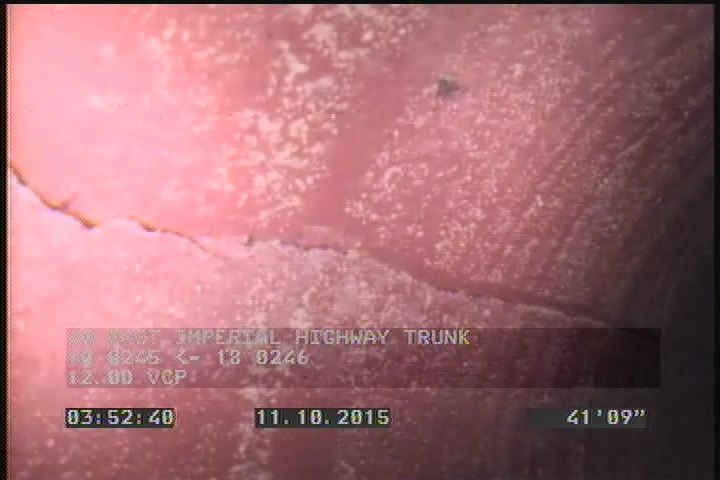

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    41.9 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

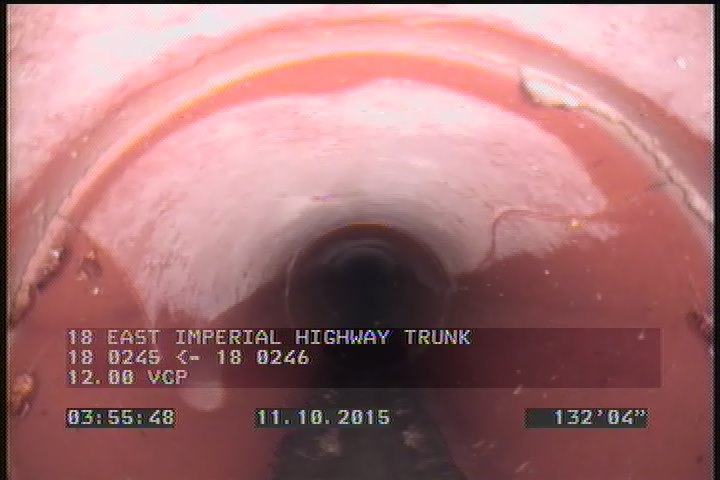

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    132.4 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P14074Work order 531089

Observations (14)

DistanceCodeObservation
303AMH18 0246 (0400)
128.3TFA—
8.7CL—
0MWM—
41.9FM—
99.9FM—
132.4FM—
298.9FM—
303VC—
0VC—
0AMH18 0245 (0349)
8.7TFA—
254TFA—
0MWL—

Properties (5)

additional_info
SC205624
custom_field_two
2
customer
LACSD
datetime
2015-11-10T03:49:11-08:00
sewer_category
GRAVITY
