Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 10, 2015, 12:02 PM

  • 18 0247_18 0246_20151110_041700.mp4

Date
11/10/2015
W/O
531089
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00674
PipeID
P14075
Time
4:02 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2858
Sewer Name
18 EAST IMPERIAL HIGHWAY TRUNK
City
SANTA FE SPRINGS, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
27
Purpose
Routine Assessment
Project
WO_531089_TV18005_OCT2015
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
18 0246
Downstream MH
18 0247
Dir. of Survey
Upstream
Length Surveyed
332.7 ft.
Total Length
332.7 ft.
Structural Index
4
Structural Quick
4100
Structural Rating
4
O&M Index
1
O&M Quick
1200
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 18 0246 to 18 0247
MH: 18 0246MH: 18 0247upstream0 ft. VC - Vermin Cockroach0 ft. VC - Vermin Cockroach0 ft. AMH - Upstream Manhole, Survey Ends - 18 0247 (0416)6.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"33.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"140.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 4"178.4 ft. FH2 - Fracture Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish203.4 ft. FH2 - Fracture Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start261.1 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: YES, 4"332.7 ft. MWL - Water Level, 5 %of cross sectional area332.7 ft. MWM - Water Mark, 10 %of cross sectional area332.7 ft. AMH - Downstream Manhole, Survey Begins - 18 0246 (0402)

Observation photos (1)

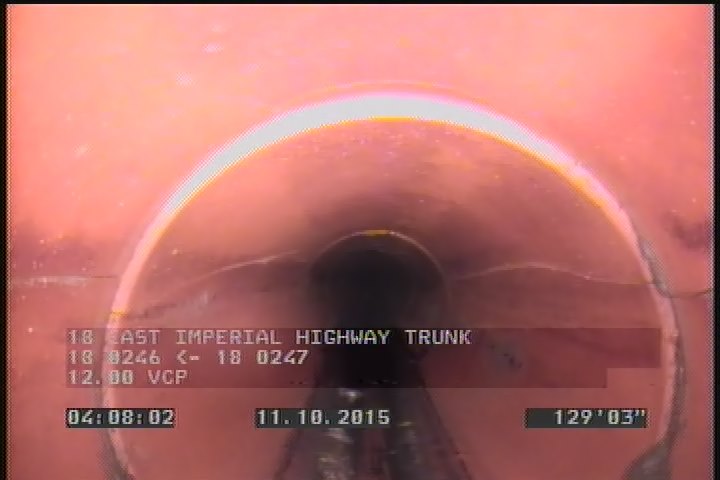

  • Fracture Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    129.3 ft. - Fracture Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P14075Work order 531089

Observations (12)

DistanceCodeObservation
332.7VC—
332.7VC—
0MWL—
332.7AMH18 0247 (0416)
299.4TFA—
192TF—
129.3FH2—
71.6TFA—
0MWM—
326.6TFA—
154.3FH2—
0AMH18 0246 (0402)

Properties (5)

additional_info
SC205624
custom_field_two
2
customer
LACSD
datetime
2015-11-10T04:02:00-08:00
sewer_category
GRAVITY
