Wastewater/Activity/PacpInspection/1.0Oct 27, 2017, 05:47 AM
A 0892_A 0891 _26102017_224727.mp4
- Date
- 10/26/2017
- W/O
- 668909
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00318
- PipeID
- P07986
- Time
- 10:47 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5005
- Sewer Name
- A JOA-1A FLORENCE AVENUE INTERCEPTOR
- City
- NORWALK
- Loc. details
- Railway
- Location Code
- L
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 29
- Purpose
- Routine Assessment
- Project
- WO_668909_TV18067_NOV2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- A 0892
- Downstream MH
- A 0891
- Dir. of Survey
- Downstream
- Length Surveyed
- 167.5 ft.
- Total Length
- 167.5 ft.
- Structural Index
- 3
- Structural Quick
- 3F2F
- Structural Rating
- 165
- O&M Index
- 2
- O&M Quick
- 2400
- O&M Rating
- 8
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 173
Observation photos (2)

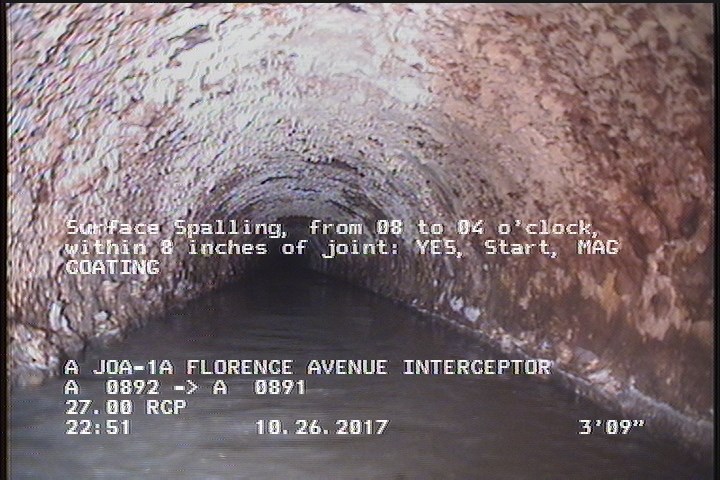

3.7 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - MAG COATING

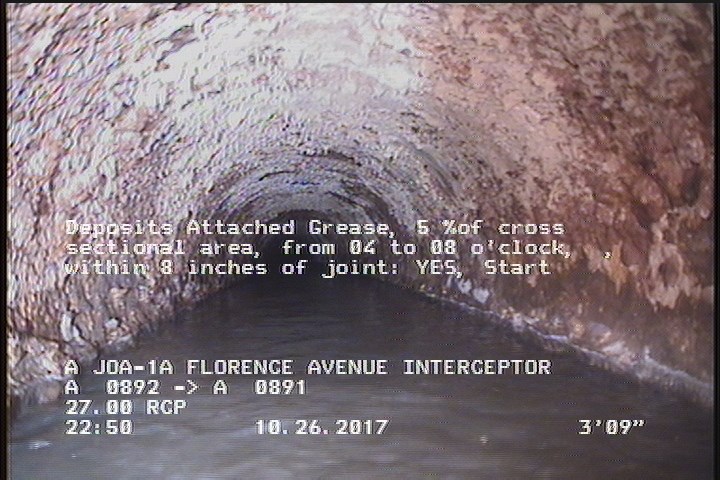

3.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 3.7 | SSS | MAG COATING |
| 2 | SRP | — |
| 49.9 | DSZ | DEBRIS |
| 0 | AMH | A 0892 |
| 167.1 | SSS | — |
| 0 | MWM | — |
| 3.7 | MGO | MAG COATING |
| 18.4 | DSZ | DEBRIS |
| 0 | MWL | — |
| 167.1 | DAGS | — |
| 3.7 | DAGS | — |
| 167.5 | AMH | A 0891 |
| 166 | SRP | — |
Properties (6)
- additional_info
- SC350359
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-26T22:47:02-07:00
- sewer_category
- Gravity
- year_laid
- 31499
