Wastewater/Activity/PacpInspection/1.0Nov 22, 2017, 06:07 AM
14 0480_14 0479 _11212017_220902.mp4
- Date
- 11/21/2017
- W/O
- 674154
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00573
- PipeID
- P18569
- Time
- 10:07 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5225
- Sewer Name
- 14 FERN AVENUE TRUNK
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_674154_TV14010_DEC2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 14 0480
- Downstream MH
- 14 0479
- Dir. of Survey
- Downstream
- Length Surveyed
- 350.8 ft.
- Total Length
- 350.8 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

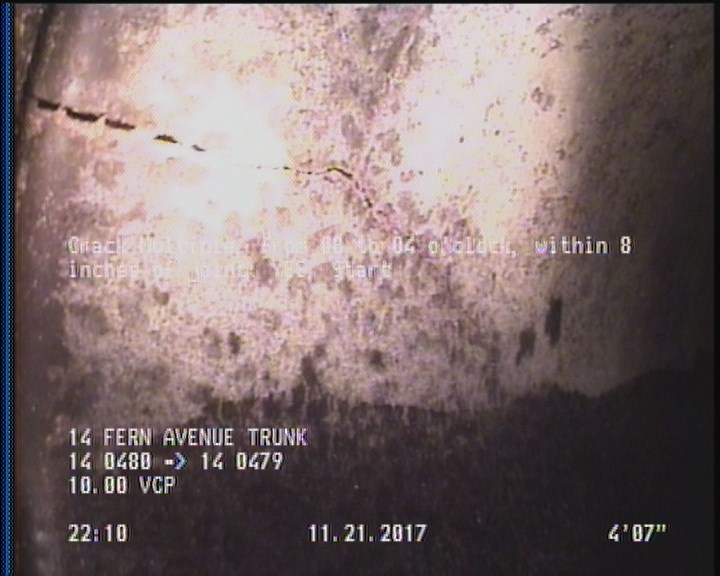

4.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

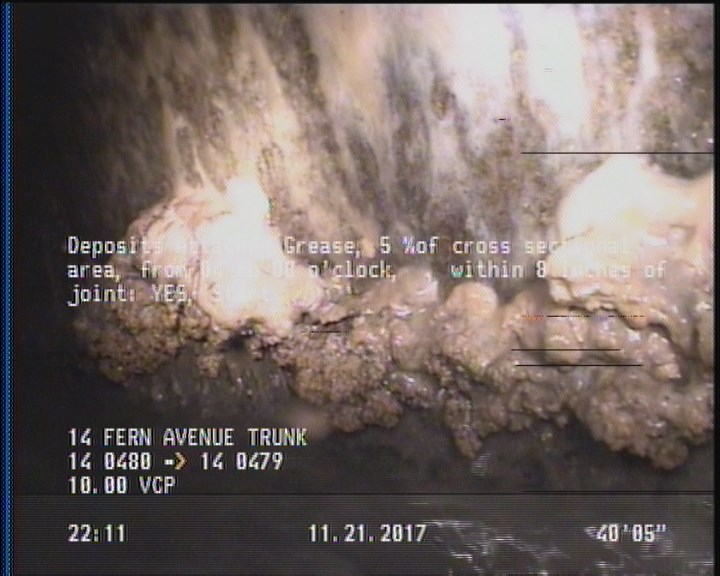

40.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

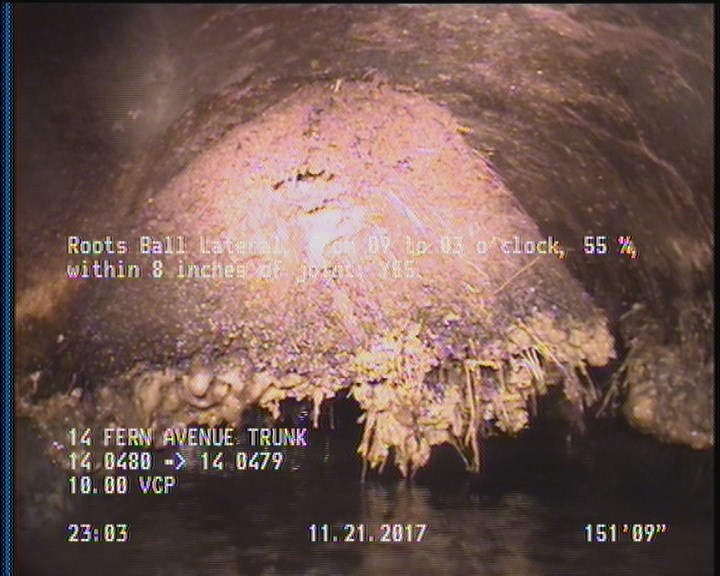

151.7 ft. - Roots Ball Lateral, from 09 to 03 o'clock, 85 %, within 8 inches of joint: YES
Observations (24)
| Distance | Code | Observation |
|---|---|---|
| 151.7 | TFC | — |
| 341.3 | TFC | — |
| 302.5 | TFC | — |
| 348.2 | CM | — |
| 151.7 | TFA | — |
| 98.9 | TFC | — |
| 299.9 | TFC | — |
| 348.2 | DAGS | — |
| 252.3 | TFC | — |
| 40.4 | DAGS | — |
| 4.6 | CM | — |
| 50.7 | TFC | — |
| 343.8 | TFC | — |
| 101.6 | TFC | — |
| 350.8 | AMH | 14 0479 |
| 249.6 | TFC | — |
| 199.3 | TFC | — |
| 0 | AMH | 14 0480 |
| 0 | MWM | — |
| 0 | MWL | — |
| 48.1 | TFC | — |
| 149.6 | TFC | — |
| 151.7 | RBL | — |
| 202.2 | TFC | — |
Properties (5)
- additional_info
- SC346096
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-11-21T22:07:58-08:00
- sewer_category
- Gravity
