Wastewater/Activity/PacpInspection/1.0Oct 26, 2017, 04:59 AM
A 0901_A 0900 _25102017_221813.mp4
- Date
- 10/25/2017
- W/O
- 668909
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00318
- PipeID
- P07995
- Time
- 9:59 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5004
- Sewer Name
- A JOA-1A FLORENCE AVENUE INTERCEPTOR
- City
- NORWALK
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- WO_668909_TV18067_NOV2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- A 0901
- Downstream MH
- A 0900
- Dir. of Survey
- Downstream
- Length Surveyed
- 431.7 ft.
- Total Length
- 431.7 ft.
- Structural Index
- 2
- Structural Quick
- 3P2R
- Structural Rating
- 445
- O&M Index
- 2
- O&M Quick
- 2P00
- O&M Rating
- 170
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 615
Observation photos (3)

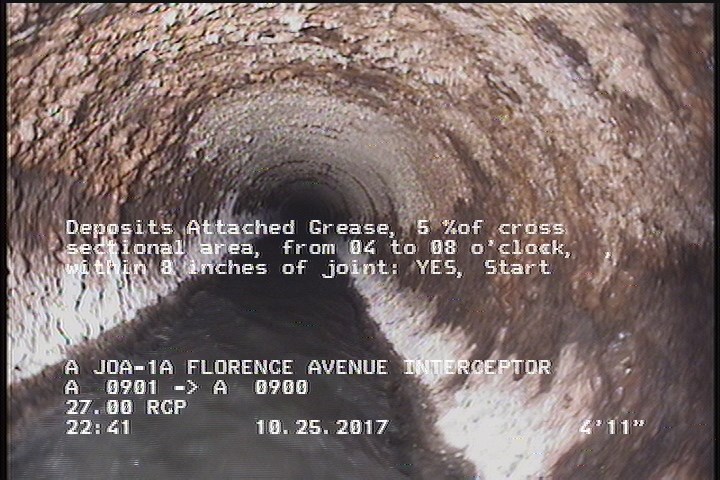

4.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

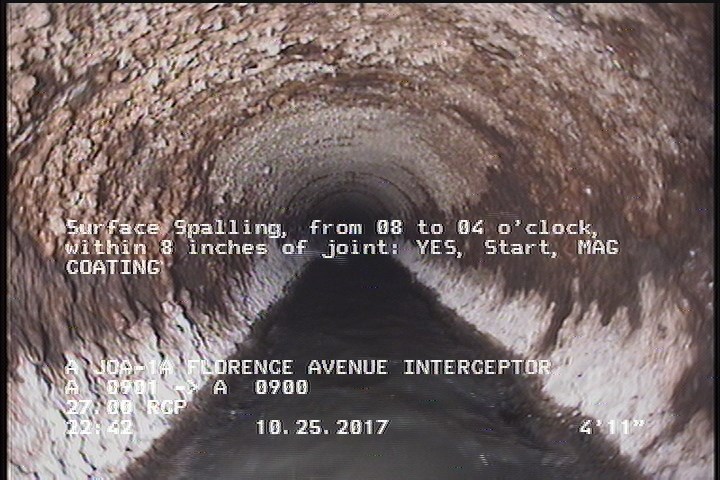

4.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - MAG COATING

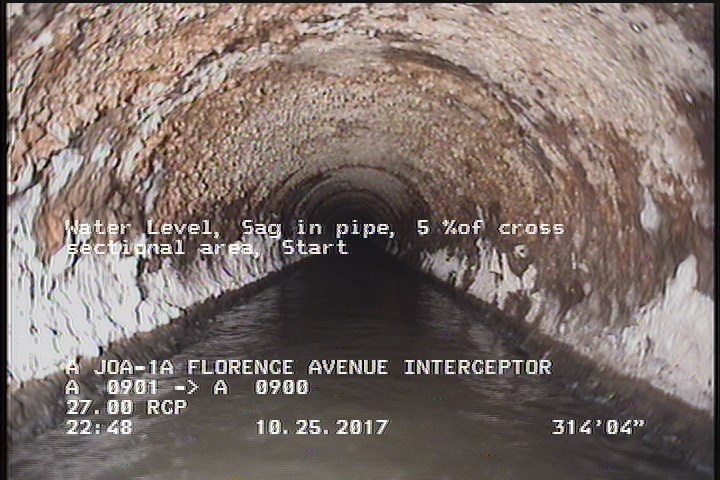

314.1 ft. - Water Level, Sag in pipe, 5 %of cross sectional area, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 4.9 | DAGS | — |
| 4.9 | SSS | MAG COATING |
| 429 | SRP | — |
| 314.1 | MWLS | — |
| 431.7 | AMH | A 0900 |
| 4.9 | MGO | MAG COATING |
| 2 | SRP | — |
| 0 | MWL | — |
| 429.8 | SSS | — |
| 0 | MWM | — |
| 429.8 | DAGS | — |
| 364.8 | MWLS | — |
| 0 | AMH | A 0901 |
Properties (6)
- additional_info
- SC350358
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-25T21:59:23-07:00
- sewer_category
- Gravity
- year_laid
- 31604
