Wastewater/Activity/PacpInspection/1.0Nov 21, 2017, 08:34 AM
14 0259_14 0258_11212017_003901.mp4
- Date
- 11/21/2017
- W/O
- U-111-11880
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00569
- PipeID
- P18316
- Time
- 12:34 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5223
- Sewer Name
- 14 AVENUE "H" TRUNK
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_668668_TV14069_NOV2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 14 0259
- Downstream MH
- 14 0258
- Dir. of Survey
- Downstream
- Length Surveyed
- 475.1 ft.
- Total Length
- 475.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2W00
- O&M Rating
- 236
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 236
Observation photos (2)

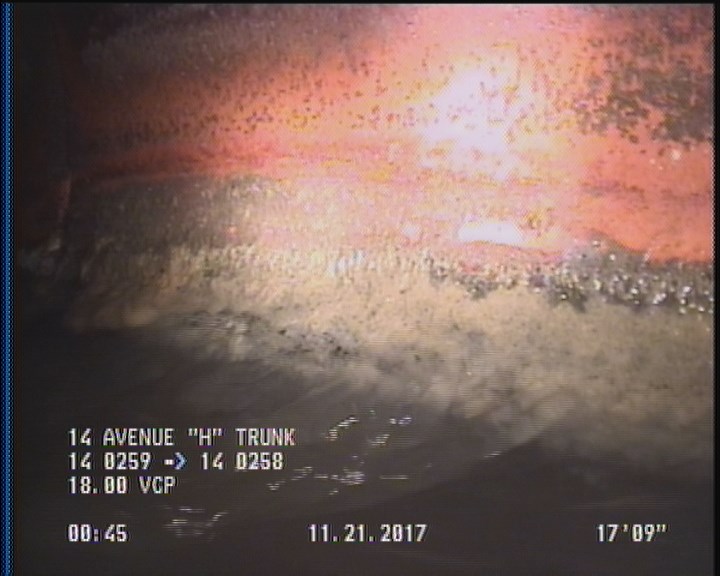

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

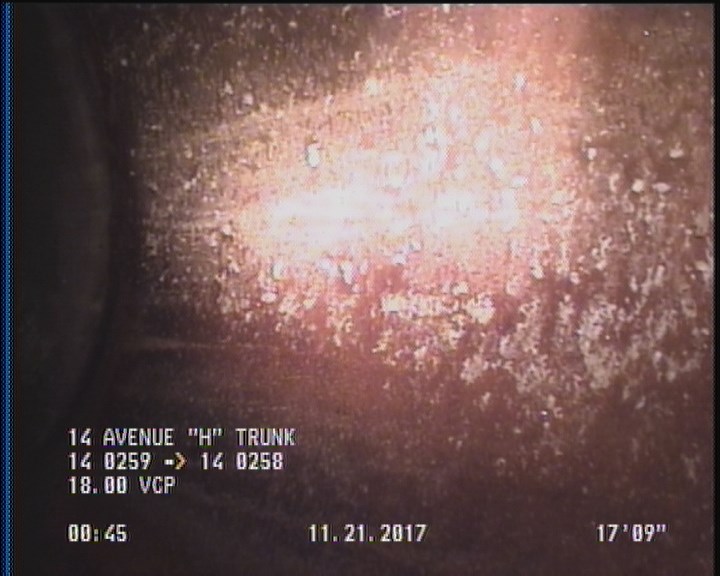

2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 121.8 | DAE | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 323.2 | TFA | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MWM | — |
| 2 | DAE | — |
| 0 | AMH | 14 0259 |
| 473.6 | DAGS | — |
| 475.1 | AMH | 14 0258 |
Properties (5)
- additional_info
- SC346094
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-11-21T00:34:09-08:00
- sewer_category
- Gravity
