Wastewater/Activity/PacpInspection/1.0Oct 25, 2017, 09:23 AM
H 1500_H 1499 _251017_013541.mp4
- Date
- 10/25/2017
- W/O
- 668649
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z01206
- PipeID
- P16460
- Time
- 2:23 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5037
- Sewer Name
- H JOINT OUTFALL H - UNIT 8M RELIEF
- City
- WEST COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- WO_668649_TV22094_NOV2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- H 1500
- Downstream MH
- H 1499
- Dir. of Survey
- Downstream
- Length Surveyed
- 298.3 ft.
- Total Length
- 298.3 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

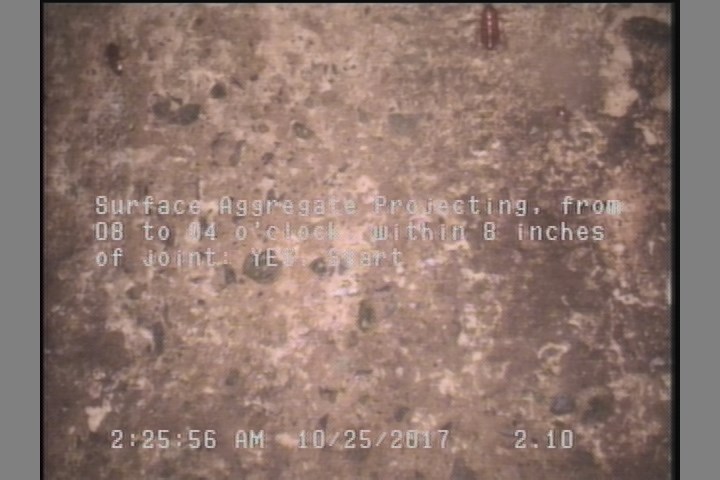

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

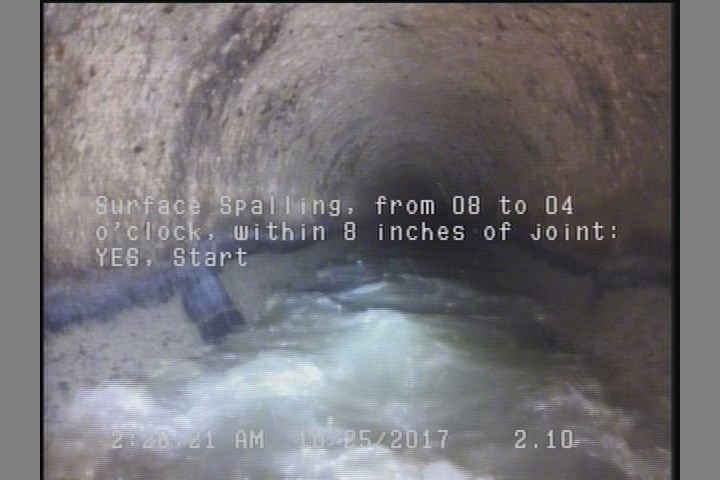

2.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | SAP | — |
| 298.3 | AMH | H 1499 |
| 298.3 | SAP | — |
| 0 | MWL | — |
| 298.3 | SSS | — |
| 2.1 | SSS | — |
| 298.3 | MGO | CONNECTION AT MH 5 O'CLOCK |
| 0 | MWM | — |
| 0 | AMH | H 1500 |
Properties (6)
- additional_info
- SC346200
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-25T02:23:10-07:00
- sewer_category
- Gravity
- year_laid
- 30047
