Wastewater/Activity/PacpInspection/1.0Oct 26, 2017, 08:22 AM
H 1496_H 1495 _261017_003431.mp4
- Date
- 10/26/2017
- W/O
- 668649
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z01206
- PipeID
- P16456
- Time
- 1:22 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5038
- Sewer Name
- H JOINT OUTFALL H - UNIT 8M RELIEF
- City
- WEST COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- WO_668649_TV22094_NOV2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- H 1496
- Downstream MH
- H 1495
- Dir. of Survey
- Downstream
- Length Surveyed
- 274.5 ft.
- Total Length
- 274.6 ft.
- Structural Index
- 3
- Structural Quick
- 3J2J
- Structural Rating
- 270
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 270
Observation photos (2)

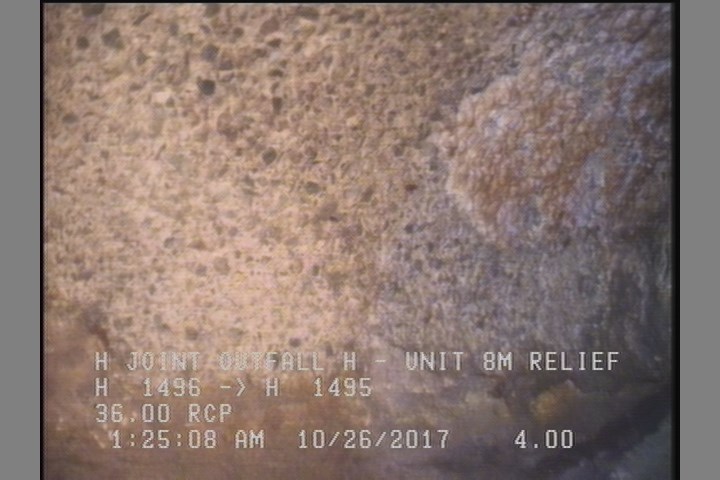

4 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

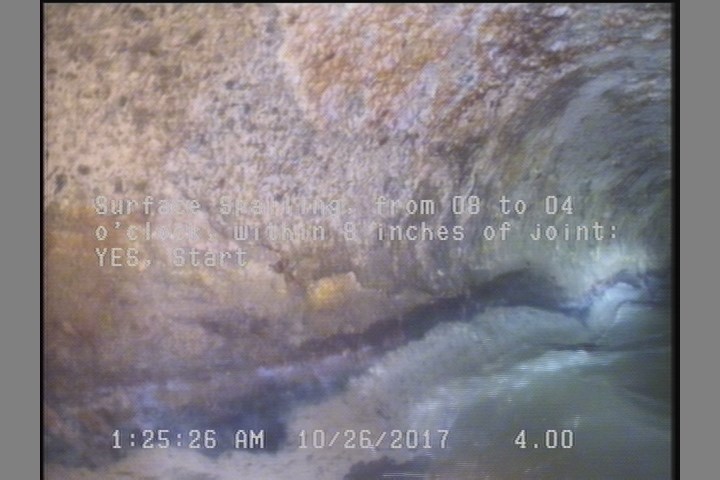

4 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 274.1 | SAP | — |
| 4 | SAP | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWL | — |
| 4 | SSS | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 274.6 | AMH | H 1495 |
| 0 | MWM | — |
| 0 | AMH | H 1496 |
| 274.6 | SSS | — |
Properties (5)
- additional_info
- SC346261
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-26T01:22:44-07:00
- sewer_category
- Gravity
