Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 6, 2017, 11:57 AM

  • 05 1135_05 1134 _11062017_035755.mp4

Date
11/06/2017
W/O
668623
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00436
PipeID
P06372
Time
3:57 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5209
Sewer Name
05 EAST ROSECRANS AVENUE TRUNK, SECTION 1
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
18
Purpose
Routine Assessment
Project
WO_668623_TV05022_NOV2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
05 1135
Downstream MH
05 1134
Dir. of Survey
Downstream
Length Surveyed
447.5 ft.
Total Length
447.5 ft.
Structural Index
4
Structural Quick
4232
Structural Rating
14
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
16
Pipe schematic from manhole 05 1135 to 05 1134
MH: 05 1135MH: 05 1134downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 11350 ft. MWL - Water Level, 5 %of cross sectional area30.2 ft. FS - Fracture Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES55.7 ft. TFI - Tap Factory Made Intruding, at 12 o'clock, -, #v, within 8 inches of joint: NO, 6", 2"62.8 ft. FM - Fracture Multiple, from 06 to 12 o'clock, within 8 inches of joint: YES128.3 ft. FM - Fracture Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES181 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"251.4 ft. FS - Fracture Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES334.7 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"447.5 ft. AMH - Downstream Manhole, Survey Ends - 05 1134447.5 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK

Observation photos (5)

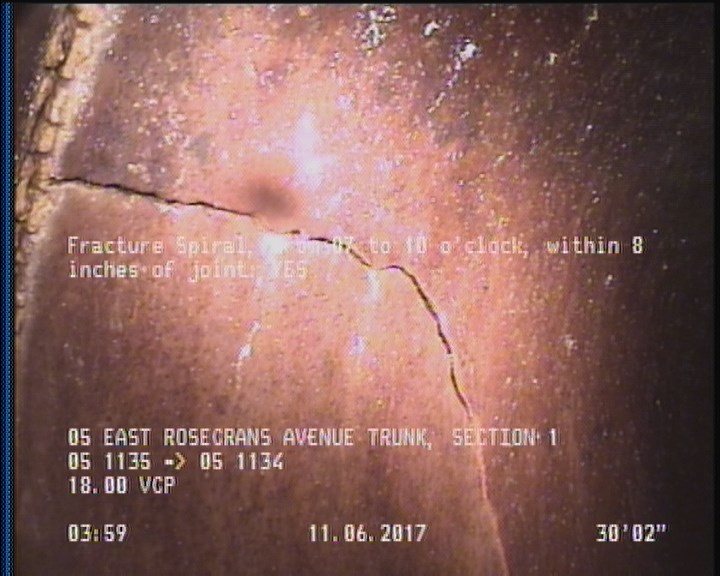

  • Fracture Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES

    30.2 ft. - Fracture Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES

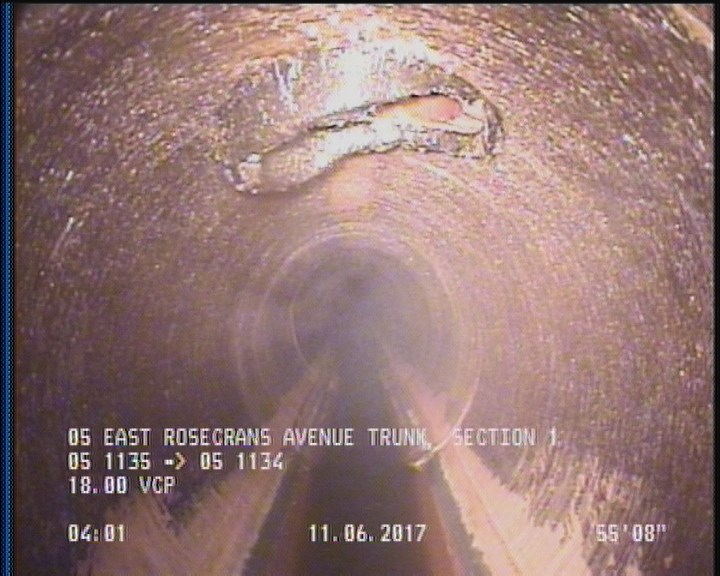

  • Tap Factory Made Intruding, at 12 o'clock, -, #v, within 8 inches of joint: NO, 6", 2"

    55.7 ft. - Tap Factory Made Intruding, at 12 o'clock, -, #v, within 8 inches of joint: NO, 6", 2"

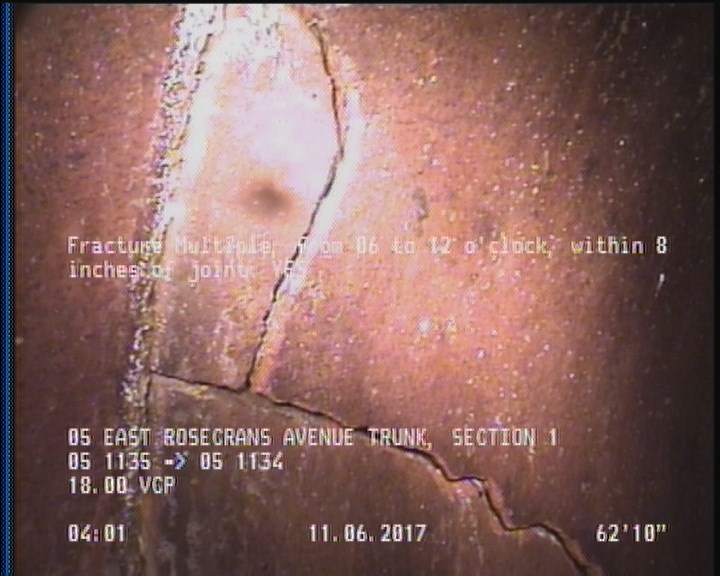

  • Fracture Multiple, from 06 to 12 o'clock, within 8 inches of joint: YES

    62.8 ft. - Fracture Multiple, from 06 to 12 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES

    128.3 ft. - Fracture Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES

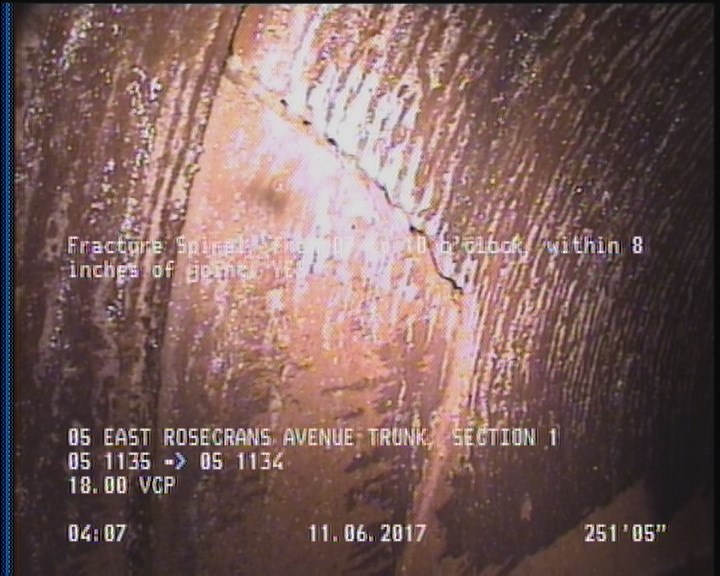

  • Fracture Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES

    251.4 ft. - Fracture Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES

All inspections of P06372Work order 668623

Observations (12)

DistanceCodeObservation
251.4FS—
55.7TFI—
30.2FS—
0MWM—
181TBA—
447.5AMH05 1134
447.5MGOACTIVE CONNECTION AT MH 3 O'CLOCK
334.7TFC—
0AMH05 1135
128.3FM—
0MWL—
62.8FM—

Properties (5)

additional_info
SC346079
custom_field_two
2
customer
LACSD
datetime
2017-11-06T03:57:49-08:00
sewer_category
Gravity
