Wastewater/Activity/PacpInspection/1.0Nov 7, 2017, 06:12 AM
05 1133_05 1092_11062017_221242.mp4
- Date
- 11/06/2017
- W/O
- 668623
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00436
- PipeID
- P06369
- Time
- 10:12 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5210
- Sewer Name
- 05 EAST ROSECRANS AVENUE TRUNK, SECTION 1
- City
- GARDENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_668623_TV05022_NOV2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 05 1133
- Downstream MH
- 05 1092
- Dir. of Survey
- Downstream
- Length Surveyed
- 445.1 ft.
- Total Length
- 445.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 312b
- O&M Rating
- 355
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 355
Observation photos (3)

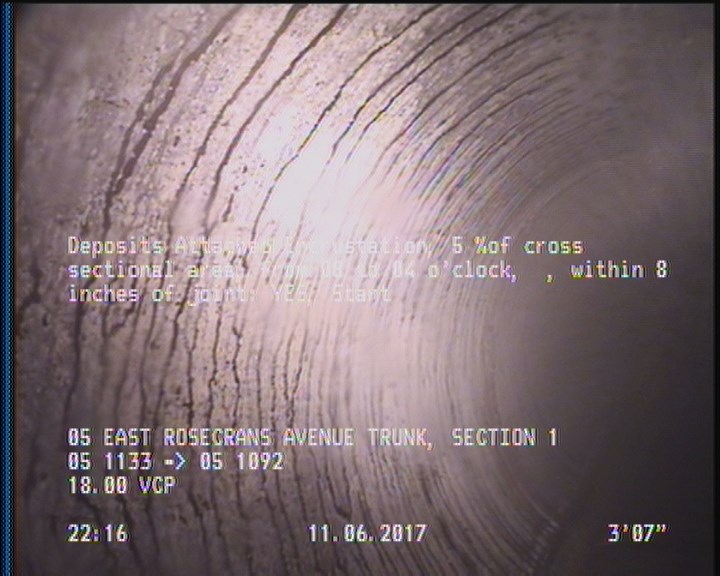

2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

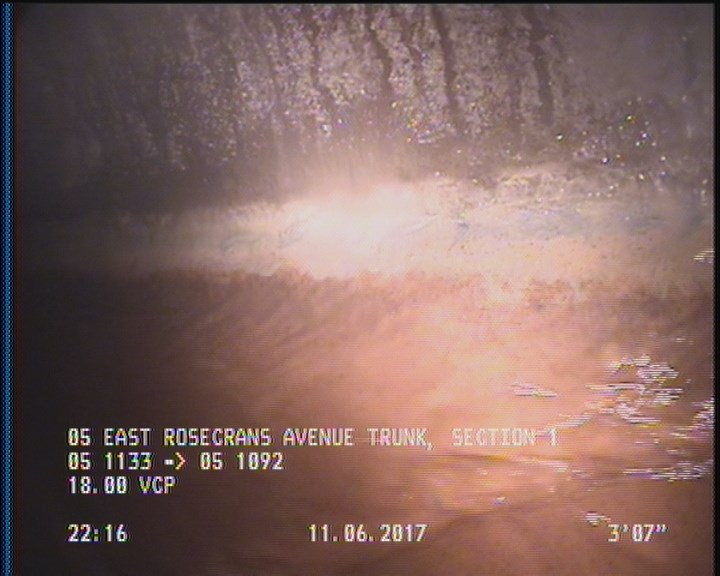

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

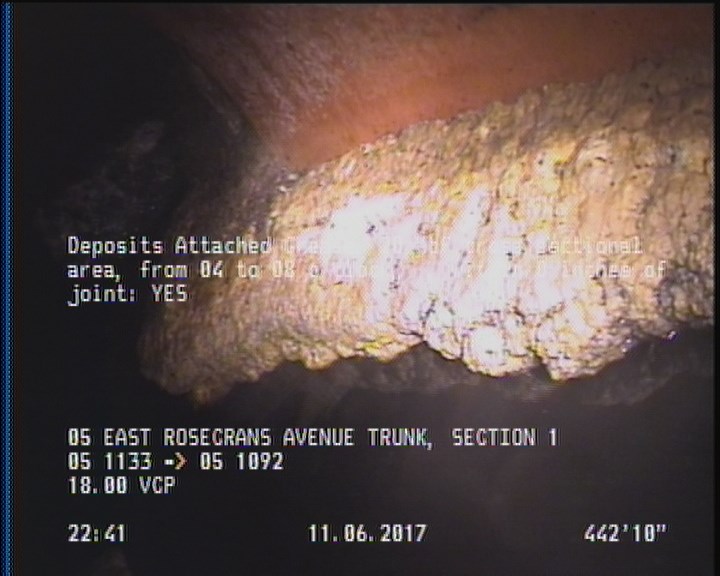

442.9 ft. - Deposits Attached Grease, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 442.9 | DAGS | — |
| 445.1 | AMH | 05 1092 |
| 442.9 | DAE | — |
| 2 | DAE | — |
| 202.3 | TFA | — |
| 51.7 | TFA | — |
| 442.9 | DAGS | — |
| 445.1 | MGO | ACTIVE CONNECTION AT MH 3 AND 12 O'CLOCK |
| 352.4 | TFC | — |
| 0 | MWM | — |
| 445.1 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWL | — |
| 0 | AMH | 05 1133 |
| 2 | DAGS | — |
Properties (5)
- additional_info
- SC346080
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-11-06T22:12:20-08:00
- sewer_category
- Gravity
