Wastewater/Activity/PacpInspection/1.0Oct 6, 2017, 05:58 AM
20 0263_20 0262_10052017_225826.mp4
- Date
- 10/05/2017
- W/O
- 663234
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00753
- PipeID
- P19230
- Time
- 10:58 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4741
- Sewer Name
- 20 35TH STREET EAST TRUNK
- City
- PALMDALE
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_663234_TV20009_OCT2017
- Material
- NRCP
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 20 0263
- Downstream MH
- 20 0262
- Dir. of Survey
- Downstream
- Length Surveyed
- 37.8 ft.
- Total Length
- 37.8 ft.
- Structural Index
- 3
- Structural Quick
- 3727
- Structural Rating
- 35
- O&M Index
- 2
- O&M Quick
- 2700
- O&M Rating
- 14
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 49
Observation photos (3)

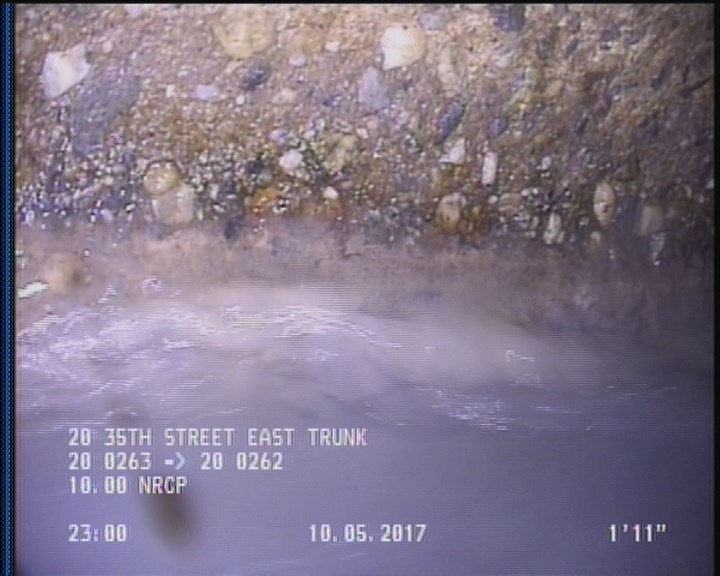

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

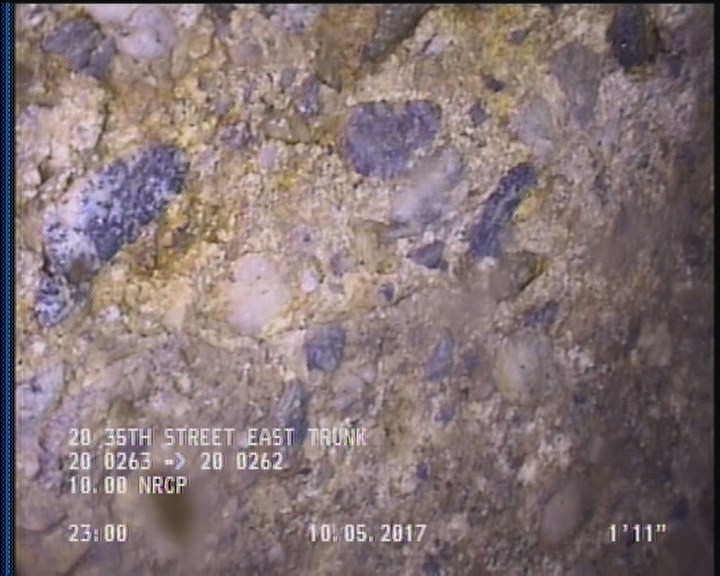

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

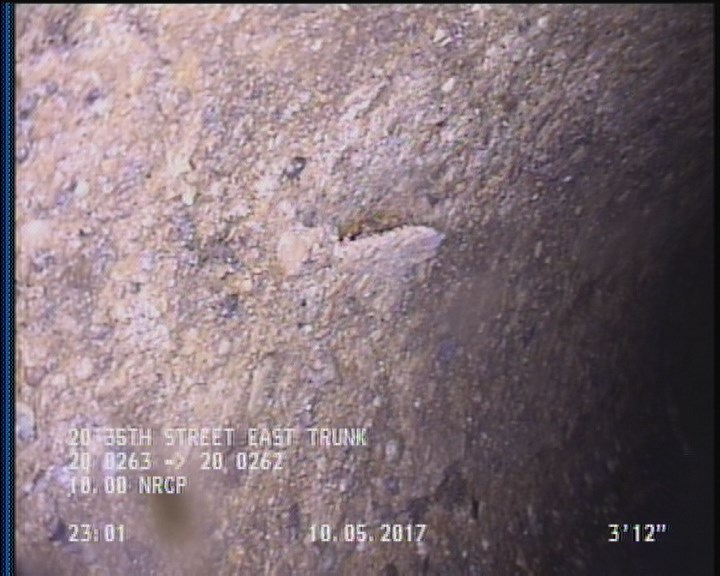

2.8 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 35.8 | SSS | — |
| 2.8 | SSS | — |
| 2 | DAGS | — |
| 37.8 | AMH | 20 0262 |
| 0 | MWM | — |
| 37.8 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 35.8 | DAGS | — |
| 0 | AMH | 20 0263 |
| 2 | SAP | — |
| 0 | MWL | — |
| 35.8 | SAP | — |
Properties (5)
- additional_info
- SC346055
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-10-05T22:58:08-07:00
- sewer_category
- Gravity
