Wastewater/Activity/PacpInspection/1.0Jun 17, 2016, 08:35 AM
B 1006_B 1005 _17062016_013549.mp4
- Date
- 06/17/2016
- W/O
- 563409
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00925
- PipeID
- P21742
- Time
- 1:35 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3534
- Sewer Name
- B JOINT OUTFALL B - UNIT 8G RELIEF
- City
- DUARTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_563409_TV22070_JUNE2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- B 1006
- Downstream MH
- B 1005
- Dir. of Survey
- Downstream
- Length Surveyed
- 321.7 ft.
- Total Length
- 321.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 128
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 128
Observation photos (3)

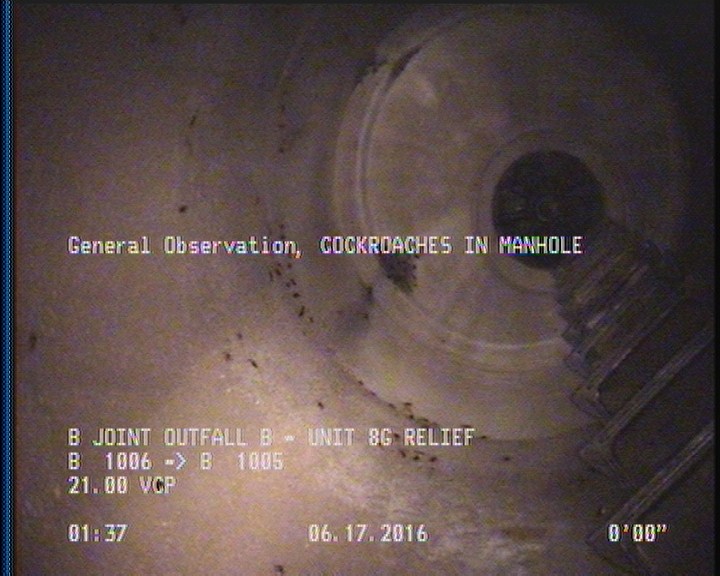

0 ft. - General Observation - COCKROACHES IN MANHOLE

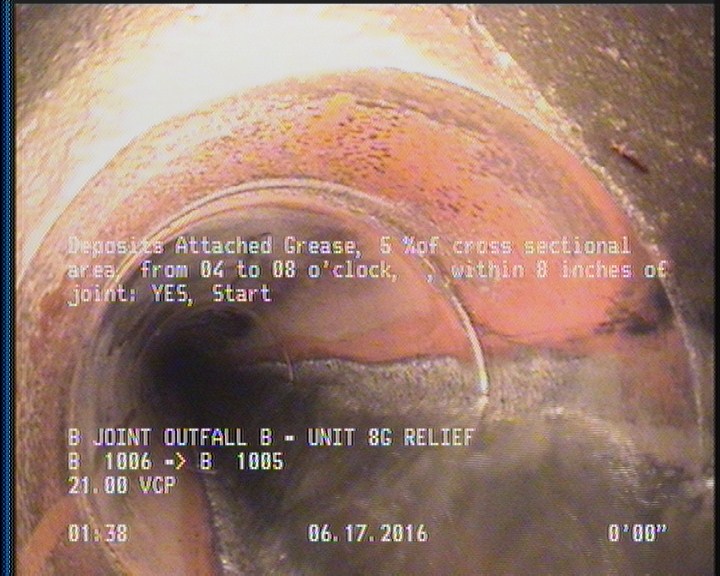

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

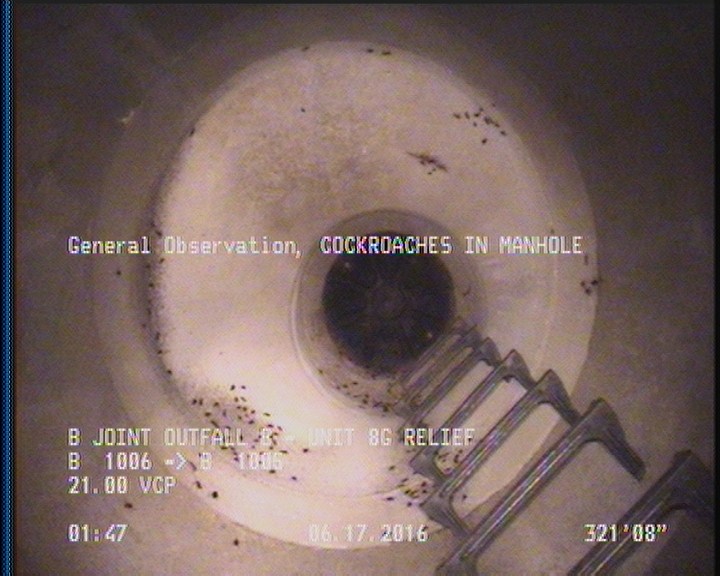

321.7 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 320.2 | DAGS | — |
| 0 | AMH | B 1006 |
| 321.7 | AMH | B 1005 |
| 0 | MWM | — |
| 321.7 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWL | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 2 | DAGS | — |
Properties (6)
- additional_info
- SC305768
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-06-17T01:35:15-07:00
- sewer_category
- Gravity
- year_laid
- 35802
