Wastewater/Activity/PacpInspection/1.0Oct 24, 2017, 05:23 AM
02 1775_02 1774 _23102017_224253.mp4
- Date
- 10/23/2017
- W/O
- 6696151
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00275
- PipeID
- P04125
- Time
- 10:23 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4999
- Sewer Name
- 02 INDIANA STREET RELIEF TRUNK
- City
- LOS ANGELES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 11A
- Purpose
- Routine Assessment
- Project
- WO_669151_TV02069_NOV2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 02 1775
- Downstream MH
- 02 1774
- Dir. of Survey
- Downstream
- Length Surveyed
- 139.3 ft.
- Total Length
- 139.3 ft.
- Structural Index
- 2
- Structural Quick
- 3126
- Structural Rating
- 15
- O&M Index
- 2
- O&M Quick
- 2A00
- O&M Rating
- 22
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 37
Observation photos (3)

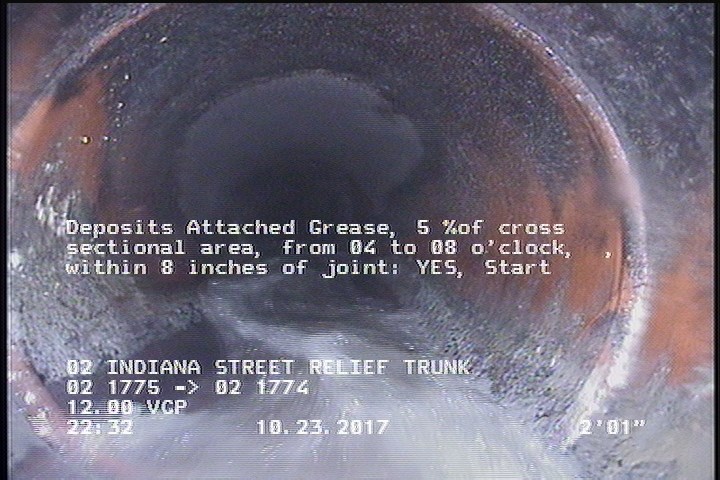

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

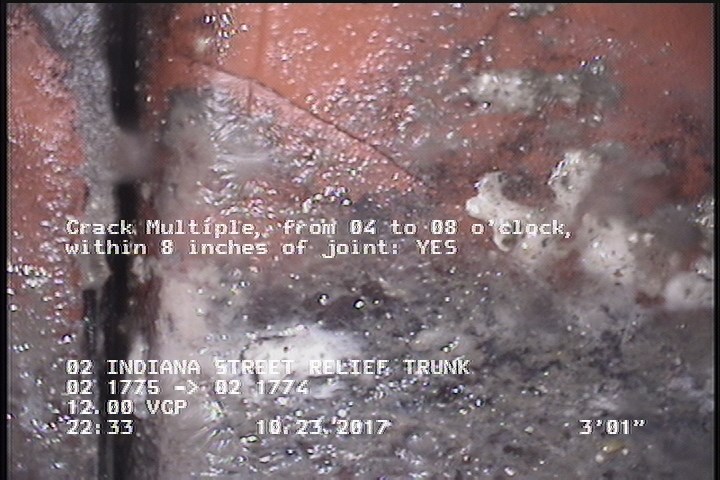

3.1 ft. - Crack Multiple, from 04 to 08 o'clock, within 8 inches of joint: YES

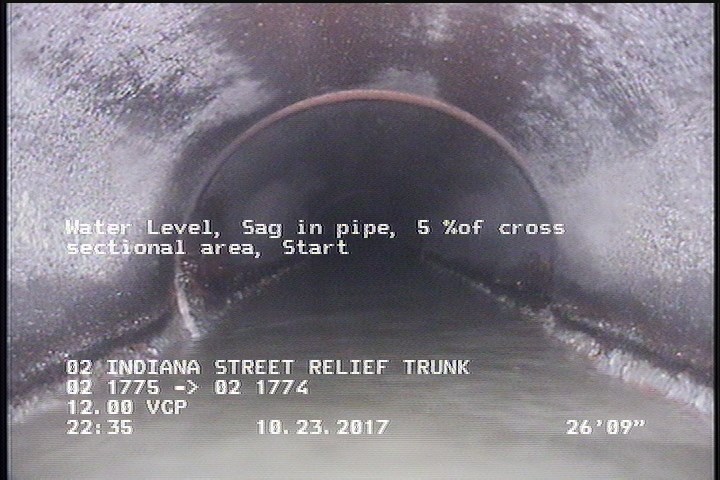

26.7 ft. - Water Level, Sag in pipe, 5 %of cross sectional area, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 02 1775 |
| 84.9 | DSZ | DEBRIS |
| 0 | MGO | CONNECTION AT 9 OC |
| 0 | MWL | — |
| 75.3 | TF | — |
| 134.9 | DSZ | DEBRIS |
| 138 | MGO | Surface Spalling throughout the reach |
| 26.7 | MWLS | — |
| 0 | MWM | — |
| 3.1 | CM | — |
| 138.7 | DAGS | — |
| 139.3 | AMH | 02 1774 |
| 130.7 | TF | — |
| 58.8 | MWLS | — |
| 2.1 | DAGS | — |
Properties (4)
- additional_info
- SC350353
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-23T22:23:45-07:00
