Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 22, 2016, 05:49 AM

  • 01 0265_01 0264_062116_224945.mpg

Date
06/21/2016
W/O
574241
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00218
PipeID
P01311
Time
10:49 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3403
Sewer Name
01 SOUTH PARK AVENUE TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
09
Purpose
Routine Assessment
Project
WO_574241_TV01204_JUNE2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Lining Method
Segmented Panel
Shape
Circular
Height
15 in.
Upstream MH
01 0265
Downstream MH
01 0264
Dir. of Survey
Downstream
Length Surveyed
331.9 ft.
Total Length
331.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 01 0265 to 01 0264
MH: 01 0265MH: 01 0264downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 02650 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT THE MH CAPPED 9 O'CLOCK2.7 ft. DAE - Deposits Attached Encrustation, 10 %of cross sectional area, from 06 to 09 o'clock, , within 8 inches of joint: YES149.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"176.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"238.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"331.9 ft. AMH - Downstream Manhole, Survey Ends - 01 0264331.9 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK

Observation photos (1)

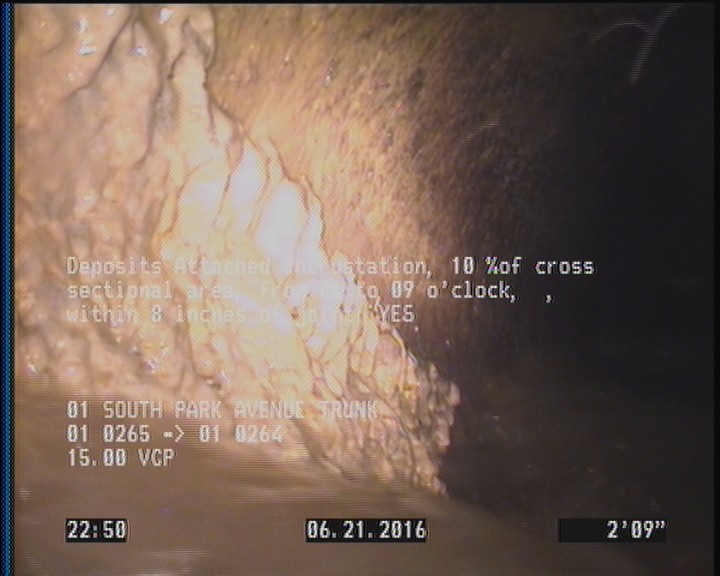

  • Deposits Attached Encrustation, 10 %of cross sectional area, from 06 to 09 o'clock, , within 8 inches of joint: YES

    2.7 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 06 to 09 o'clock, , within 8 inches of joint: YES

All inspections of P01311Work order 574241

Observations (11)

DistanceCodeObservation
176.1TF—
0AMH01 0265
149.7TFA—
331.9AMH01 0264
331.9MGOCONNECTION AT THE MH 3 O'CLOCK
2.7DAE—
0MGOCONNECTION AT THE MH 3 O'CLOCK
0MWL—
0MWM—
238.6TF—
0MGOCONNECTION AT THE MH CAPPED 9 O'CLOCK

Properties (4)

additional_info
SC305853
custom_field_two
2
customer
LACSD
datetime
2016-06-21T22:49:30-07:00
