Date
09/19/2017
W/O
0661613
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z01232
PipeID
P26748
Time
10:12 AM
Certificate
U-1014-06022541
System Owner
—
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7519
Sewer Name
14 LANCASTER WRP
City
LANCASTER
Loc. details
Other
Location Code
Z
Purpose
Maintenance Related
Project
NEW_PIPEID20171220_20170919SHO_LANCASTER_WRP
Material
Vitrified Clay Pipe
Shape
Other
Height
24 in.
Upstream MH
LN 0006
Downstream MH
LN 0005
Dir. of Survey
Downstream
Length Surveyed
246.4 ft.
Total Length
246.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole LN 0006 to LN 0005
MH: LN 0006MH: LN 0005downstream0 ft. MGO - General Observation - ACTIVE CONN. IN THE MH @ 70 ft. AMH - Upstream Manhole, Survey Begins - 10300 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area10.1 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start33.6 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: YES, 6"94.1 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 6" - OPEN95.1 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 6" - OPEN121.4 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: NO, 6"139.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 10" - OPEN243.9 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish246.4 ft. AMH - Downstream Manhole, Survey Ends - 1045

Observation photos (1)

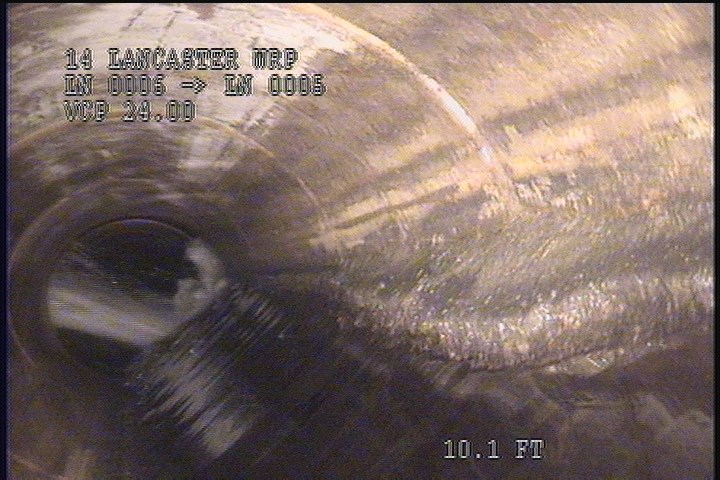

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    10.1 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P26748Work order 0661613

Observations (12)

DistanceCodeObservation
94.1TFOPEN
0MGOACTIVE CONN. IN THE MH @ 7
121.4TFA—
0AMH1030
33.6TFA—
95.1TFOPEN
10.1DAE—
139.7TFOPEN
246.4AMH1045
0MWM—
0MWL—
243.9DAE—

Properties (4)

additional_info
(Pipe ID changed from N/A to P26751 12/20/2017) INSPECTING DEFECTIVE VCP FOR CORROSION
custom_field_three
NO DEFECTS
custom_field_two
4
datetime
2017-09-19T10:12:57-07:00
