Wastewater/Activity/PacpInspection/1.0Oct 14, 2017, 11:00 AM
Section#2_04 0015_04 0014__10142017__G6854.mp4
- Date
- 10/14/2017
- W/O
- 0630073
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00408
- PipeID
- P11743
- Time
- 4:00 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6854
- Sewer Name
- 04 DISTRICT #4 OUTFALL TRUNK
- City
- BEVERLY HILLS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 04
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- 20171014MDM_DISTRICT_4_0UTFALL_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- 04 0015
- Downstream MH
- 04 0014
- Dir. of Survey
- Downstream
- Length Surveyed
- 547.8 ft.
- Total Length
- 547.8 ft.
- Structural Index
- 2
- Structural Quick
- 2U00
- Structural Rating
- 222
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 222
Observation photos (4)

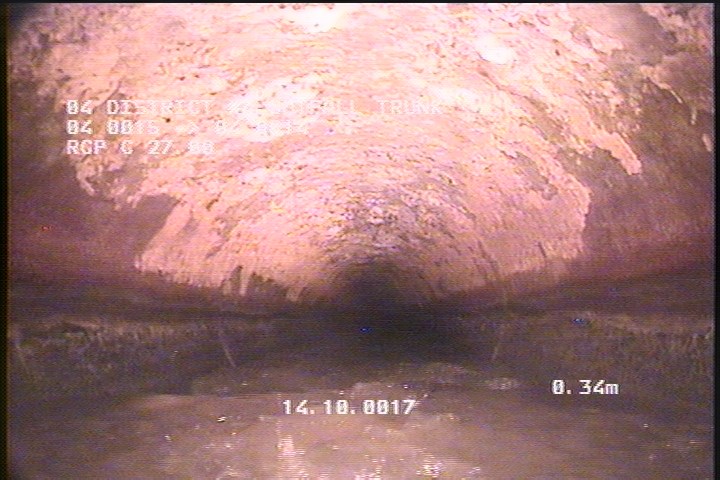

2 ft. - General Observation - MAG COAT 80% START 8:00 TO 4:00

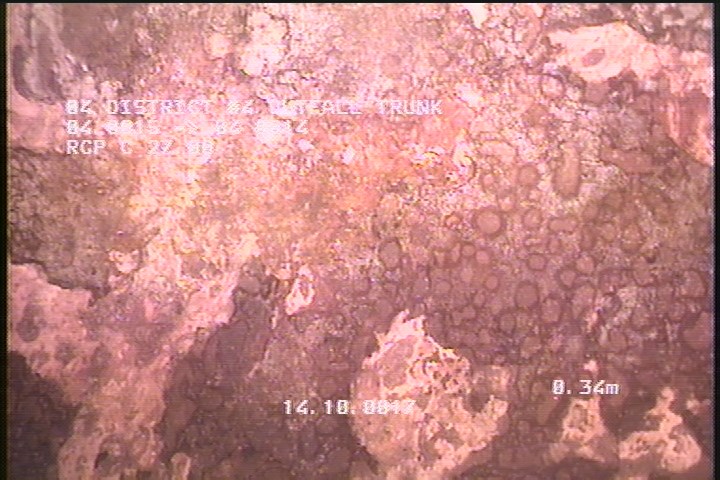

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING LAITANCE COAT

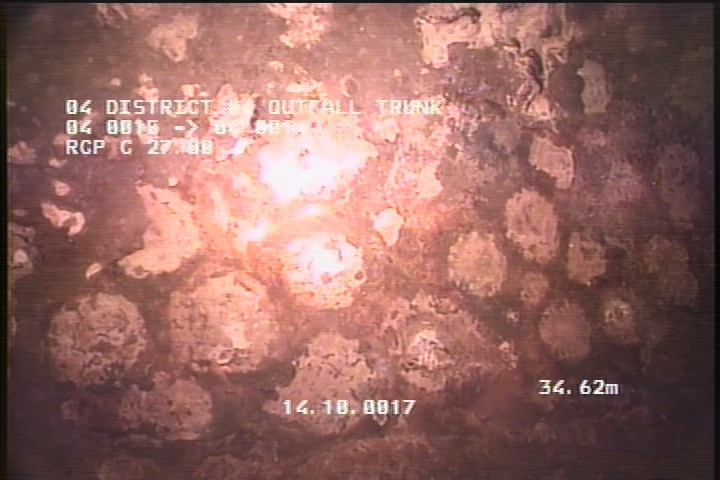

113.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING LAITANCE COAT

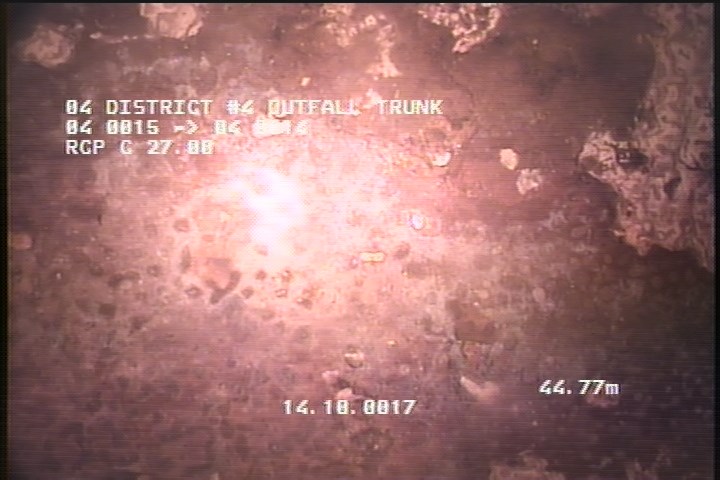

146.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING LATANCE COAT
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 547.8 | AMH | 4:30AM |
| 0 | MWL | — |
| 146.9 | SSS | BLISTERING LATANCE COAT |
| 0 | AMH | 4:00AM |
| 547.2 | MGO | MAG COAT FINISH 80% |
| 113.6 | SSS | BLISTERING LAITANCE COAT |
| 547.2 | SSS | BLISTERING LAITANCE COAT |
| 0 | MWM | — |
| 2 | MGO | MAG COAT 80% START 8:00 TO 4:00 |
| 2 | SSS | BLISTERING LAITANCE COAT |
Properties (4)
- custom_field_three
- SPALLING BLISTERING LAITANCE COAT
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-10-14T04:00:00-07:00
