Wastewater/Activity/PacpInspection/1.0Nov 22, 2016, 10:26 AM
B 0572_B 0849 _11222016_023500.mp4
- Date
- 11/22/2016
- W/O
- 602270
- Weather
- Light Rain
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00101
- PipeID
- P09122
- Time
- 2:26 AM
- Certificate
- U-20-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3885
- Sewer Name
- B JOINT OUTFALL B - UNIT 7
- City
- MONTEREY PARK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- WO_602270_TV15120_NOV2016
- Material
- CIP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- B 0849
- Downstream MH
- B 0572
- Dir. of Survey
- Upstream
- Length Surveyed
- 10.8 ft.
- Total Length
- 10.8 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 3
- O&M Quick
- 4221
- O&M Rating
- 10
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (3)

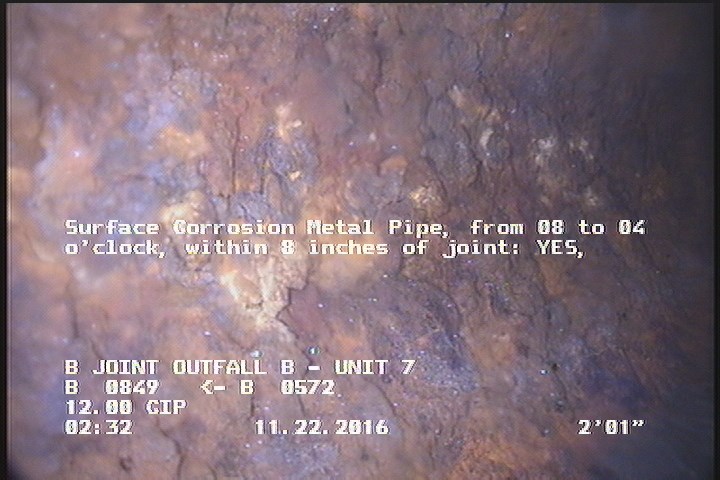

2.1 ft. - Surface Corrosion Metal Pipe, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

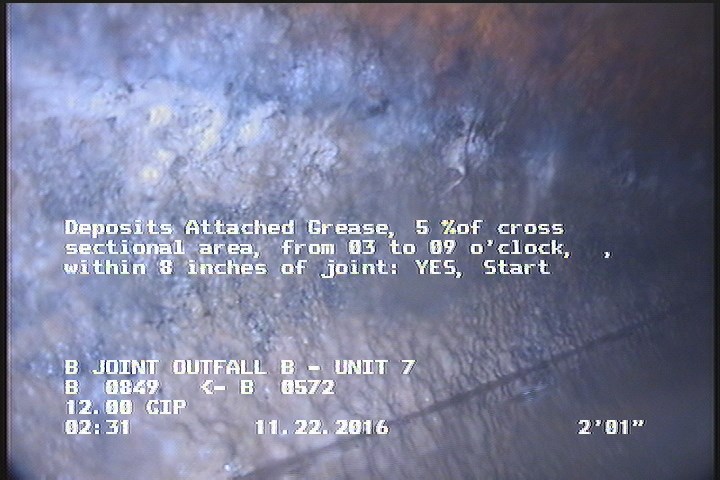

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

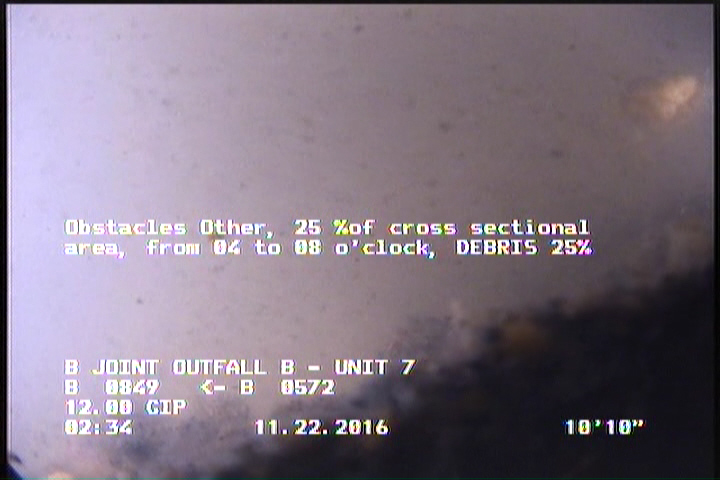

10.8 ft. - Obstacles Other, 25 %of cross sectional area, from 04 to 08 o'clock - DEBRIS 25%
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 10.8 | MCU | — |
| 0 | MWL | — |
| 0 | MGO | LATERAL AT MH 3 O CLOCK ACTIVE |
| 0 | MWM | — |
| 10.8 | OBZ | DEBRIS 25% |
| 5.2 | MCU | — |
| 10.8 | MSA | SEVERE DEBRIS 25% UP MH B 0572 PAVE OVER CANNOT LOCATE |
| 2.1 | SCP | — |
| 10.8 | DAGS | — |
| 10.8 | SCP | — |
| 2.1 | DAGS | — |
| 0 | AMH | B 0849 |
Properties (5)
- additional_info
- SC305218
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-11-22T02:26:25-08:00
- sewer_category
- Gravity
