Wastewater/Activity/PacpInspection/1.0Nov 16, 2016, 09:15 AM
B 0570_B 0569 _11162016_014509.mp4
- Date
- 11/16/2016
- W/O
- 602270
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00101
- PipeID
- P09119
- Time
- 1:15 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3880
- Sewer Name
- B JOINT OUTFALL B - UNIT 7
- City
- MONTEREY PARK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- WO_602270_TV15120_NOV2016
- Material
- CIP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- B 0570
- Downstream MH
- B 0569
- Dir. of Survey
- Downstream
- Length Surveyed
- 501 ft.
- Total Length
- 501 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 1
- O&M Quick
- 2112
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (2)

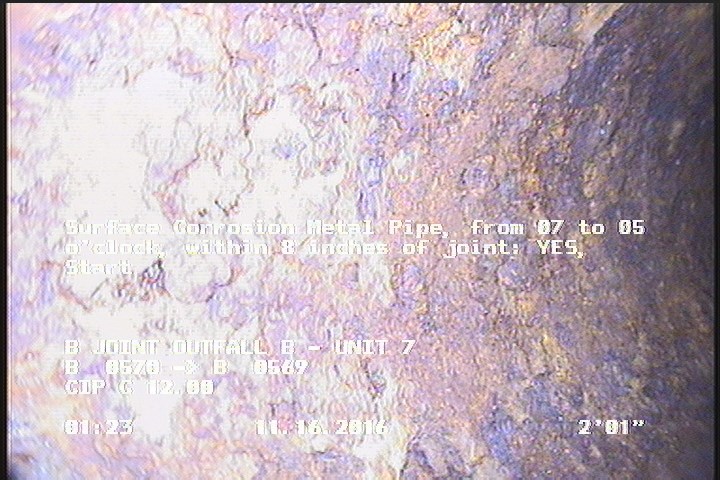

2.1 ft. - Surface Corrosion Metal Pipe, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

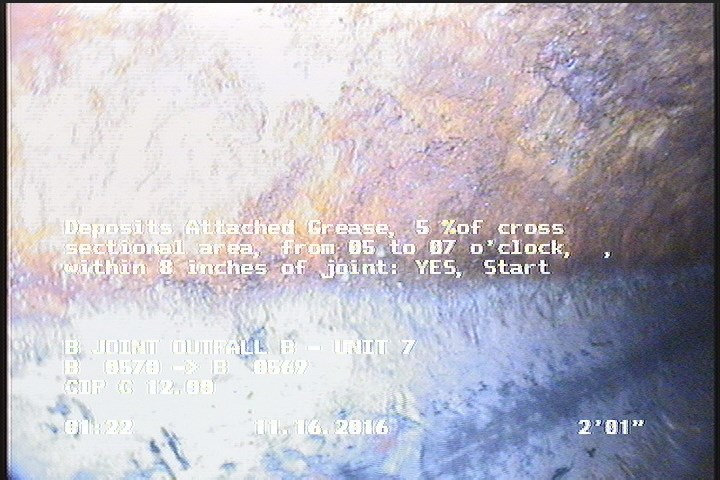

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | SCP | — |
| 0 | VC | AT MH |
| 0 | MWL | — |
| 501 | VC | AT MH |
| 0 | MWM | — |
| 0 | AMH | B 0570 |
| 500.2 | DAGS | — |
| 2.1 | DAGS | — |
| 500.2 | SCP | — |
| 501 | AMH | B 0569 |
| 501 | MGO | LATERAL AT MH 9 O CLOCK ACTIVE |
Properties (5)
- additional_info
- SC305212
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-11-16T01:15:38-08:00
- sewer_category
- Gravity
