Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 15, 2016, 07:57 AM

  • B 0556_B 0555 _12152016_000239.mp4

Date
12/14/2016
W/O
602270
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00101
PipeID
P09103
Time
11:57 PM
Certificate
U507033386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3941
Sewer Name
B JOINT OUTFALL B - UNIT 7
City
MONTERAY PARK, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
27
Purpose
V
Project
WO_602270_TV15120_NOV2016
Material
CIP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
B 0555
Downstream MH
B 0556
Dir. of Survey
Upstream
Length Surveyed
7.1 ft.
Total Length
7.1 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
4
O&M Quick
5131
O&M Rating
8
Overall Index
4
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole B 0555 to B 0556
MH: B 0555MH: B 0556upstream0 ft. DNZ - Deposits Ingress Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - MORTAR0 ft. MSA - Survey Abandoned - DUE TO DEPOSITS ATTACHED AT BOTTOM OF PIPE4.1 ft. DAZ - Deposits Attached Other, 45 %of cross sectional area, from 12 to 04 o'clock, , within 8 inches of joint: YES5.1 ft. SCP - Surface Corrosion Metal Pipe, from 07 to 05 o'clock, within 8 inches of joint: YES7.1 ft. MGO - Reversal Inspection7.1 ft. MWL - Water Level, 15 %of cross sectional area7.1 ft. AMH - Downstream Manhole, Survey Begins - B 05557.1 ft. MWM - Water Mark, 30 %of cross sectional area

Observation photos (3)

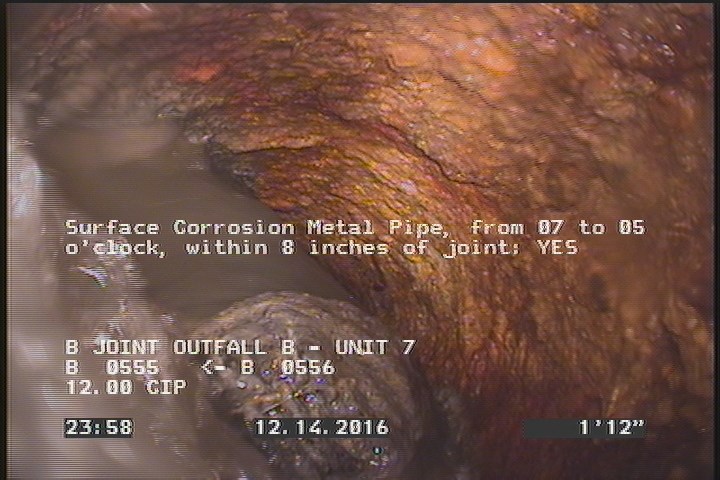

  • Surface Corrosion Metal Pipe, from 07 to 05 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Corrosion Metal Pipe, from 07 to 05 o'clock, within 8 inches of joint: YES

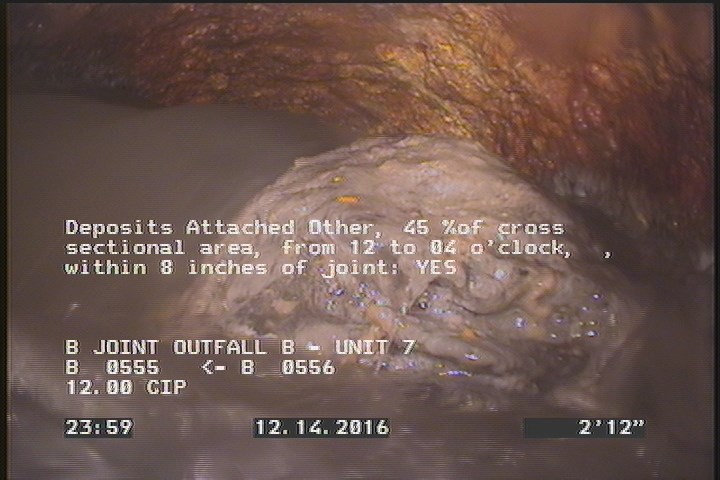

  • Deposits Attached Other, 45 %of cross sectional area, from 12 to 04 o'clock, , within 8 inches of joint: YES

    3 ft. - Deposits Attached Other, 45 %of cross sectional area, from 12 to 04 o'clock, , within 8 inches of joint: YES

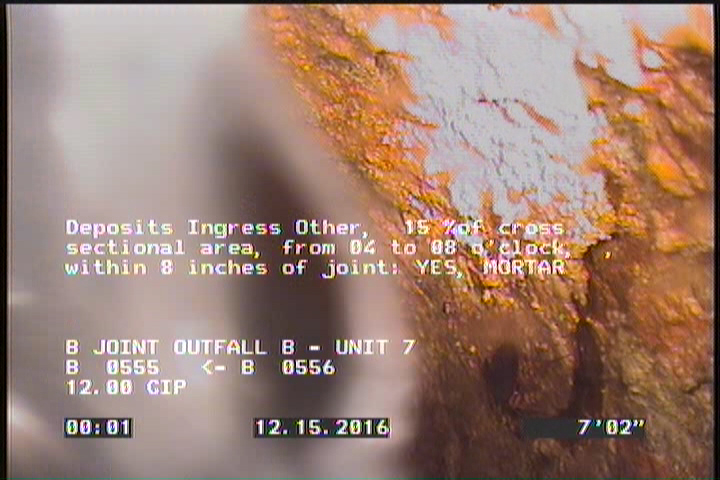

  • Deposits Ingress Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - MORTAR

    7.1 ft. - Deposits Ingress Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - MORTAR

All inspections of P09103Work order 602270

Observations (8)

DistanceCodeObservation
7.1DNZMORTAR
0MGO—
2SCP—
7.1MSADUE TO DEPOSITS ATTACHED AT BOTTOM OF PIPE
0MWL—
0AMHB 0555
3DAZ—
0MWM—

Properties (5)

additional_info
SC317686
custom_field_two
5
customer
LACSD
datetime
2016-12-14T23:57:00-08:00
sewer_category
Gravity
