Wastewater/Activity/PacpInspection/1.0Nov 15, 2017, 10:16 PM
A 0542SA 0541S 20171108035720.mpg
- Date
- 11/15/2017
- W/O
- 669228
- Weather
- Dry
- Operator/Surveyor
- E RUIZ
- Sewer ID
- Z00327
- PipeID
- P20240
- Time
- 2:16 PM
- Certificate
- 123456
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5132
- Sewer Name
- A JOA-1A SOUTH HAWTHORNE-WARFIELD AV EXTENSION
- City
- LAWNDALE
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_669228_TV05235_NOV2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- A 0541
- Downstream MH
- A 0542
- Dir. of Survey
- Upstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 4
- O&M Quick
- 5131
- O&M Rating
- 8
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (3)

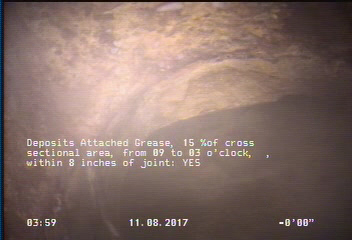

0 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES

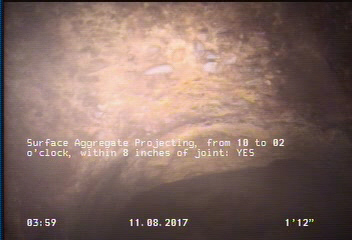

1.1 ft. - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES

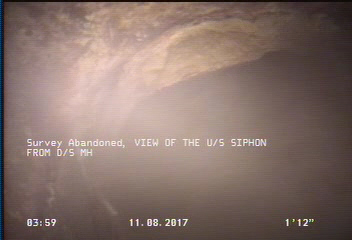

2 ft. - Survey Abandoned - VIEW OF U/S SIPHON FROM D/S MH
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 1.1 | SAP | — |
| 2 | MSA | VIEW OF U/S SIPHON FROM D/S MH |
| 0 | AMH | A 0541 S |
| 0 | DAGS | — |
Properties (5)
- additional_info
- SC348340
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-11-15T14:16:04-08:00
- sewer_category
- Siphon
