Wastewater/Activity/PacpInspection/1.0Oct 18, 2017, 11:43 PM
05 1763_05 1762_071117_033113.mpg
- Date
- 10/18/2017
- W/O
- 669082
- Weather
- Dry
- Operator/Surveyor
- E RUIZ
- Sewer ID
- Z00471
- PipeID
- P06990
- Time
- 4:43 PM
- Certificate
- 123456
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5128
- Sewer Name
- 05 LOMITA TRUNK
- City
- TORRANCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_669082_TV05198_NOV2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 05 1763
- Downstream MH
- 05 1762
- Dir. of Survey
- Downstream
- Length Surveyed
- 259.4 ft.
- Total Length
- 259.4 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 412F
- O&M Rating
- 76
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 78
Observation photos (5)

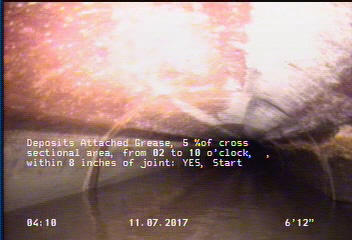

6.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

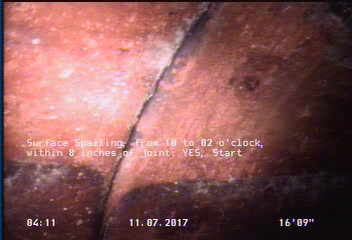

16.1 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

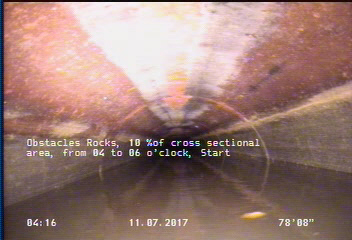

78.1 ft. - Obstacles Rocks, 10 %of cross sectional area, from 04 to 06 o'clock, Start
253.1 ft. - Deposits Settled Gravel, 25 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES

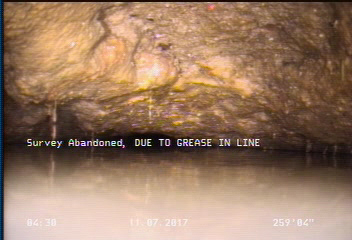

259.4 ft. - Survey Abandoned - DUE TO GREASE IN LINE
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 253 | OBR | — |
| 78.1 | OBR | — |
| 6.1 | DAGS | — |
| 0 | AMH | 05 1763 |
| 259.4 | MSA | DUE TO GREASE IN LINE |
| 253 | DAGS | — |
| 16.1 | SSS | — |
| 253 | SSS | — |
| 253.1 | DSGV | — |
Properties (5)
- additional_info
- SC348336
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-10-18T16:43:44-07:00
- sewer_category
- Gravity
