Wastewater/Activity/PacpInspection/1.0Nov 3, 2017, 10:59 AM
05 1696_05 1695 _031117_031212.mpg
- Date
- 11/03/2017
- W/O
- 669082
- Weather
- Dry
- Operator/Surveyor
- E RUIZ
- Sewer ID
- Z00471
- PipeID
- P06922
- Time
- 3:59 AM
- Certificate
- 123456
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5123
- Sewer Name
- 05 LOMITA TRUNK
- City
- TORRANCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_669082_TV05198_NOV2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 05 1696
- Downstream MH
- 05 1695
- Dir. of Survey
- Downstream
- Length Surveyed
- 337.6 ft.
- Total Length
- 337.6 ft.
- Structural Index
- 4
- Structural Quick
- 4300
- Structural Rating
- 12
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (4)

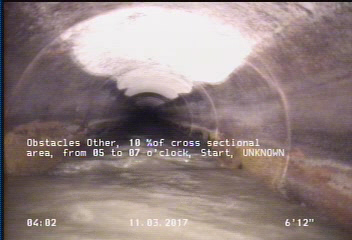

7 ft. - Obstacles Other, 10 %of cross sectional area, from 05 to 07 o'clock, Start - UNKNOWN

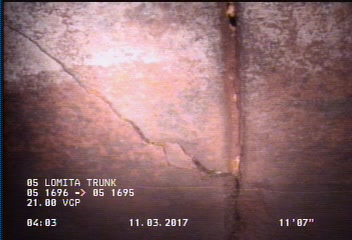

11.6 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

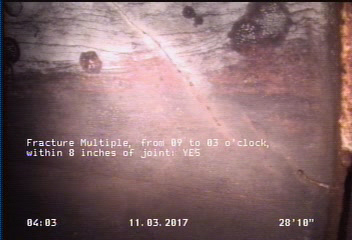

28.8 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

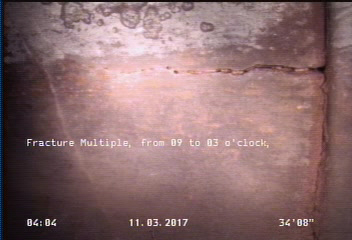

34.6 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 7 | OBZ | UNKNOWN |
| 28.8 | FM | — |
| 0 | MWL | — |
| 11.6 | FM | — |
| 0 | AMH | 05 1696 |
| 108.2 | OBZ | — |
| 334.4 | FM | — |
| 337.6 | AMH | 05 1695 |
| 34.6 | FM | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC348331
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-11-03T03:59:52-07:00
- sewer_category
- Gravity
