Wastewater/Activity/PacpInspection/1.0Nov 3, 2017, 10:02 AM
05 1697_05 1696 _031117_022247.mpg
- Date
- 11/03/2017
- W/O
- 669082
- Weather
- Dry
- Operator/Surveyor
- E RUIZ
- Sewer ID
- Z00471
- PipeID
- P06923
- Time
- 3:02 AM
- Certificate
- 123456
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5123
- Sewer Name
- 05 LOMITA TRUNK
- City
- TORRANCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_669082_TV05198_NOV2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 05 1697
- Downstream MH
- 05 1696
- Dir. of Survey
- Downstream
- Length Surveyed
- 491.3 ft.
- Total Length
- 491.3 ft.
- Structural Index
- 4
- Structural Quick
- 5143
- Structural Rating
- 17
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 19
Observation photos (4)

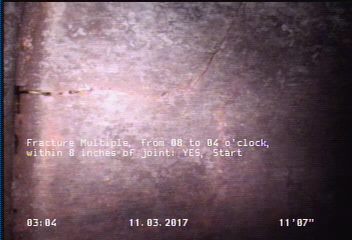

11.6 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

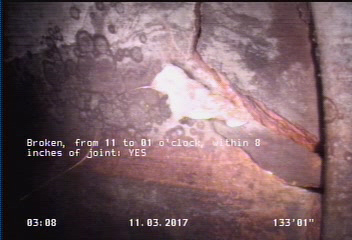

133.1 ft. - Broken, from 11 to 01 o'clock, within 8 inches of joint: YES

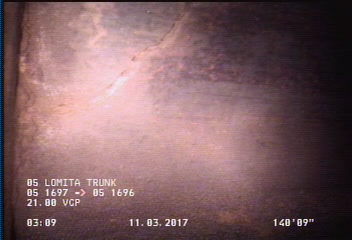

140.7 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

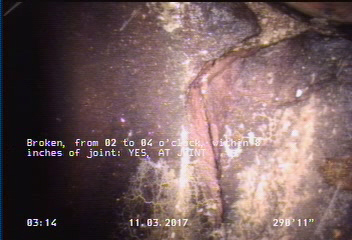

290.9 ft. - Broken, from 02 to 04 o'clock, within 8 inches of joint: YES - AT JOINT
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 140.7 | FM | — |
| 290.9 | B | AT JOINT |
| 11.6 | FM | — |
| 0 | AMH | 05 1697 |
| 133.1 | FM | — |
| 76.5 | OBZ | — |
| 489.3 | FM | — |
| 133.1 | B | — |
| 491.3 | AMH | 05 1696 |
| 489.3 | OBZ | — |
| 290.9 | TBA | — |
Properties (5)
- additional_info
- SC348331
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-11-03T03:02:53-07:00
- sewer_category
- Gravity
