Wastewater/Activity/PacpInspection/1.0Nov 2, 2017, 06:44 AM
22 1156_22 0743 _01112017_234421.mp4
- Date
- 11/01/2017
- W/O
- 668990
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00829
- PipeID
- P17533
- Time
- 11:44 PM
- Certificate
- 07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4839
- Sewer Name
- 22 SWIM PARK TRUNK
- City
- LA VERNE, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_668990_TV22091_NOV2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 22 1156
- Downstream MH
- 22 0743
- Dir. of Survey
- Downstream
- Length Surveyed
- 74.4 ft.
- Total Length
- 74.4 ft.
- Structural Index
- 3
- Structural Quick
- 5142
- Structural Rating
- 16
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 16
Observation photos (5)
26.6 ft. - Crack Longitudinal Hinge, 3, from 09 to 03 o'clock, within 8 inches of joint: YES
38.5 ft. - Crack Circumferential, from 12 to 12 o'clock, within 8 inches of joint: NO

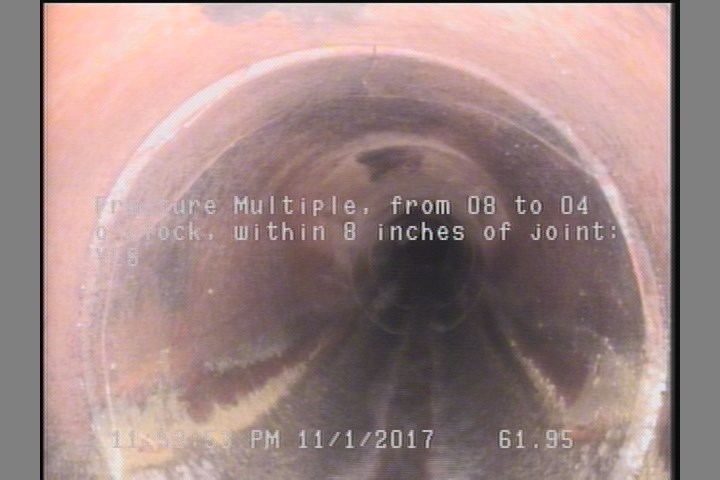

62 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

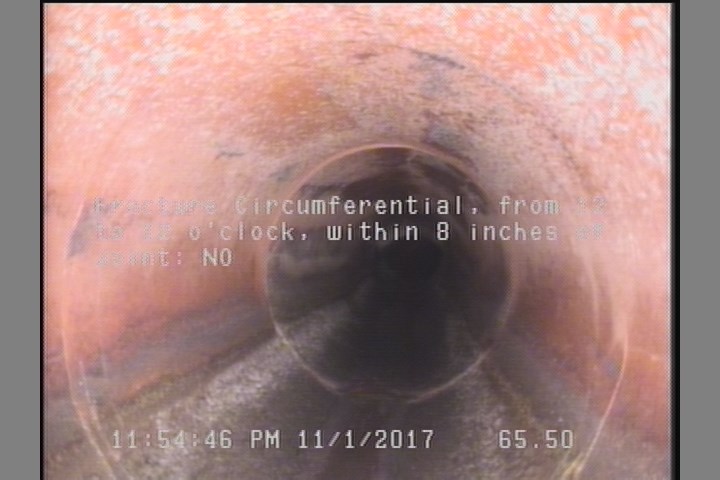

65.5 ft. - Fracture Circumferential, from 12 to 12 o'clock, within 8 inches of joint: NO
67 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 22 1156 |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 74.4 | AMH | 22 0743 |
| 67 | FM | — |
| 74.4 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 38.5 | CC | — |
| 62 | FM | — |
| 26.6 | CH3 | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 65.5 | FC | — |
Properties (5)
- additional_info
- SC343945
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-11-01T23:44:12-07:00
- sewer_category
- Gravity
